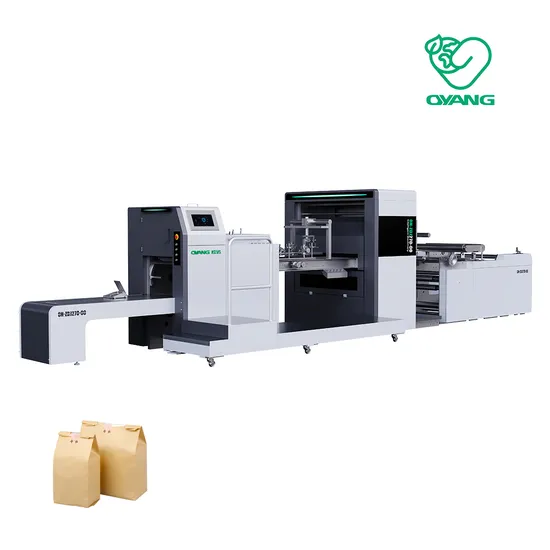

High-Speed V Bottom Paper Bag Production Machine for Efficient Manufacturing

Product Description

New World C Series Flat Bottom Paper Bag Machine This machine is designed to manufacturer sharp bottom paper bag from paper roll, and it is suitable for kraft paper, ribbed kraft paper, grease-proof paper,coated paper, medico paper &etc.By implementing steps including roll feeding,side gluing,perforating, tube forming,tube cutting off.Bottom folding and gluing, finished bag collecting within a fully automatic process, can effectively save labor costs. It has advantage of easy operation, high efficiency, more steady, It is an ideal machine for make different kind of paper bag. snack paper bag,food paper bag. bread paper bag. dry fruit paper bag and eco-friendly paper bag. Product Description V bottom paper bag machine is designed to manufacturer sharp bottom paper bag from paper roll,and it is suitable for kraft paper,ribbed kraft paper,grease-groof paper,coated paper,medico paper&etc.
By implementing step including roll feeding,side gluing,perforating,tube forming,can effective save labor costs,it has advantage of easy operation,high efficiency,more steady.V bottom paper bag machine is applied to produce paper bags for fast food restaurant, grocery stores, etc.
Product Parameters

Model No.	C270	C330
Paper Thickness Range	30−100 GSM	30-100 GSM
Paper Bag Width Range	80-270mm	80-330mm
Paper Bag Length Range	120-400mm	120-720mm
Side Folding Range	0-60mm	0-60mm
Production Precision	±0.2mm	±0.2mm
Machinery Speed	150-500 pcs/min	150-500 pcs/min
Maximum paper roll Width	900mm	1000mm
Maximum Paper roll Diameter	1200mm	1200mm
Total Power	16KW	16KW
Machine Weight	5000KGS	5500KGS
Machine Color	White or other	White or other
Machine Size	7300×2000×1850mm	7700×2000×1900mm

Company Profile
Zhejiang Ounuo Machinery Co., Ltd.is located in Pingyang County Wenzhou City, Zhejiang Province, covering an area of 130000 square metres, 15 years deep ploughing in packaging equipment industry. Invest 200 million imported of Japan stability of the whole machine. MAZAK, OKUMA, Taiwan WELLE etc, the high-precision CNC Machine, to ensure the precision of the components and the Main products 1, series of nonwoven products, including nonwoven bag machine, nonwoven production line, nonwoven Main products 2, series of paper products, automatic paper bag machine, semi-automatic paper bag machine, roll feeding/sheet feeding etc paper packaging equipment. printing machine, nonwoven cross-cutting machine and other nonwoven matching equipment for the project. Ounuo's Misson: Industry Change Because of Us
Ounuo's Vision (10-15 Years): Responsibility to Promotion Solution of Top Quality and Intelligent Bag Making Industry. Keep inmind the mission and vision and strive to provide world-class quality products and services to customers. Oyang brand is deeply loved by the global market,productsin Mexico, Argentina, the United States, Romania, Poland, Vietnam,
Brazil,theUnited Arab Emirates,India, Turkey, Egypt, Algeria, Kenya, South Africa etc and more than 120 countries and regions, The market shares for 85%+.
