P4z/P5z/P6z Axial Cooling Fan/Impeller/Blade for Powder Separation Circuit
| US$130.00-170.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
P4Z/P5Z/P6Z
Material
Pag/Pacas/Alu
Power Source
Diesel
Weight
5-15kg
After-sales Service
One Year
Warranty
One Year
Diameter
305-1343mm
Blade No.
3-16
Angle
20-50 Degree
Air Volume
8100-20000 M3/H
Transport Package
Carton/Wooden Box
Specification
P4Z
Trademark
UTEK-DELE
Origin
China
HS Code
8414
Production Capacity
50000PCS/Year
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
150.000kg
Product Description
Detailed Photos
Product Description

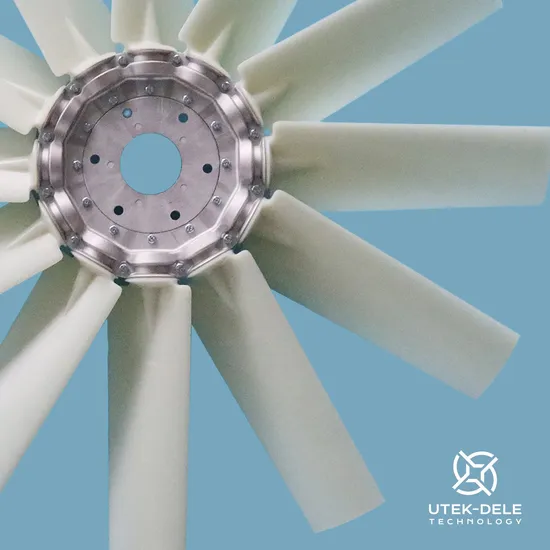

P4Z/P5Z/P6Z
The fan diameter ranges from 305-1343mm,and the blade twist angle can be adjusted from 20°to 50°to meet the different application requirement of the customer. The P4Z P5Z blade is only the geometric enlargement of the P6Z, other type blade is same with it and the root design is identical. The root is locked in the fan hub by a plastic fixing pin,which ensures that the blade will not be displaced after installation and the twist angle remains unchanged. Blade molded from high-strength thermoplastic materials or die-cast from a aluminum alloys have the following advantages:
1.More efficient
2.Less absorbed power
3.Low noise
4.Light weight High strength
5.Preservative
6.Customization
Blade Material
| Symbol | Material | Temperature range | Characteristic | Application |
| PA | Nylon6,Black | -40ºC-110ºC | Anti-aging | Standard load |
| PAG | Nylon6,Black and white | -40ºC-110ºC | Anti-aging | Heavy load |
| PAGST | Nylon6,Black | -40ºC-110ºC | Shock and impact | Strong vilbration occasion |
| PACAS | Nylon6,Blue-gray | -30ºC-100ºC | Conductivity Fire resistance | Explosive danger |
| ALU | Die-cast aluminum alloy | -40ºC-150ºC | Large temperature range | High temperature |
Blade Diameter range
| P4/5/6Z Blade number | Fan diameter mm (Minimum-Maximum) | ||
| P4Z | P5Z | P6Z | |
| 5 | 323 - 764 | 305 - 1035 | 339 - 1117 |
| 7 | 360 - 801 | 342 - 1072 | 376 - 1154 |
| 8 | 440 - 881 | 422 - 1152 | 456 - 1234 |
| 9 | 374 - 815 | 356 - 1086 | 390 - 1168 |
| 12 | 454 - 895 | 436 - 1166 | 479 - 1248 |
| 16 | 549 - 990 | 531 - 1261 | 565 - 1343 |
Application
Packaging & Shipping
We can deliver by air and sea
One unit we reinforce with a cardboard box
For multiple units we will use fumigation-free wooden boxes
Factory show
UTEK-DELE has its own processing capabilities and can customise products for customers, as well as R&D production capabilities
Certifications
Partners
UTEK-DELE ADVANTAGE 1.Same quality as wingfan and multiwing
2.Software to design the model
3.Full sets of blade and hub
4.Fast delivery
Give us a chance, and we' ll return you with satisfaction.
