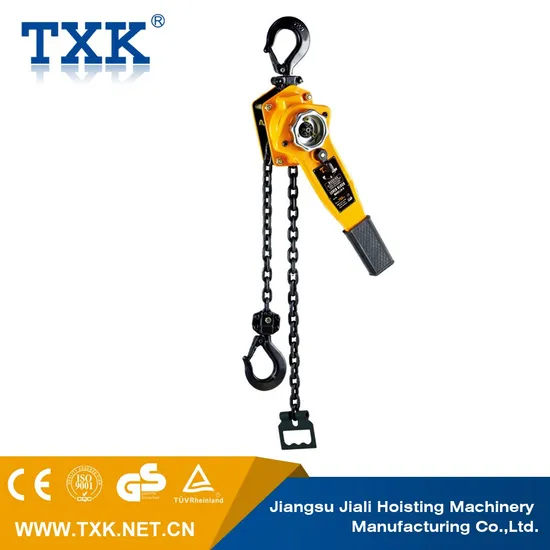

Txk Brand Portable Lever Block/Lever Hoist (LB-A) Chain Manual Block 2ton

Product Description

About Us
"TXK" was founded in 1997 and is a leading manufacturer of lifting and material handling equipments with almost 20 years experience. We provide quality, safe and stabe products to meet the highest industrial standards. We are ISO9001:2008 certified company, our products are GS,CE certified, serving all spheres of industry in the world.

Our brand "TXK" is well sold in more than 50 countries worldwide and has earned an enviable reputation for high quality products. With our Professional R&D team, we are able to provide customization services with the most professional quality and never stop meeting the highest standard of safety.

"TXK" will never stop being as an innovative manufacturer. We will continue to develop and extend our products range with high quality, safety standard and long life usage
TXK is a professional manufacturer of electric chain hoist. Our factory covers a total area of 56,000 square meters in Jiangsu Province, which is four hours visit from Shanghai airport.
Product Description
Capacity: From 0.25T to 9T
Technical Features:
1.Super Grade100 load chain-Wafios link, DIN standard.
2.Forged and Heat Treated load Hooks with batch traceability and stretch indicatiors
3.360° Handle rotation with stroke to ratchet indicators
4.Double pawl Brake system
5.Asbestos Free Brake Linings
6.Forged Safety Latch
7.Sealed Roller Bearings
8.100% Load Tested to 1.5xWLL
9.MBL of 400% of WLL
10.2000 Cycle Batch Test
Lever Hoist specifications:

Model LB-A		75	100	150	200	300	600
Capacity (ton)		0.75	1	1.5	2	3	6
Standard lifting height (m)		1.5	1.5	1.5	1.5	1.5	1.5
Running test load (t)		1.13	1.5	2.25	3	4.5	9
Pulling efforts (kg)		14	16	22	26	32	34
Chainfall		1	1	1	1	1	2
Load chain diameter (mm)		6	6	8	8	10	10
Net weight (kg)		6.2	6.5	10.8	11.2	18.5	32.5
Dimensions (mm)	A	148	148	172	172	195	195
	B	280	280	410	410	410	410
	C	45	48	52	60	66	80
	D	96	96	110	110	145	145
	E	325	325	380	380	480	480
