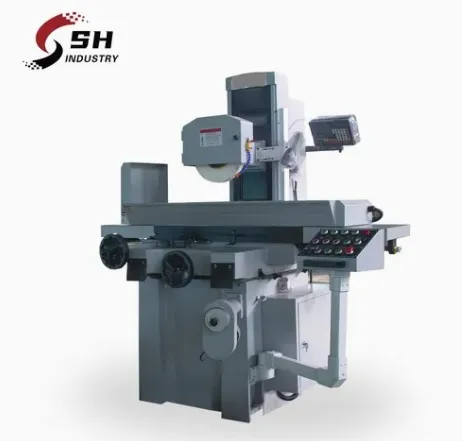

High Precision Hydraulic Flat Grinding Machine Price (Surface Grinding Equipment MY1230)
| US$6,000.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MY1230
Type
Surface Grinding Machine
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product Name
High Precision Hydraulic Flat Grinding Machine Pri
Grinding Wheel Speed
520
Hydraulic Motor
2.2
Working Pressure
4
Fuel Tank Capacity
20
Transport Package
Plywoiod Case
Trademark
Shenghuan
Origin
China
HS Code
8460199000
Production Capacity
200
Packaging & Delivery
Package Size
196.00cm * 148.00cm * 185.00cm
Package Gross Weight
1400.000kg
Product Description
High Precision Hydraulic Flat Grinding Machine Price (Surface Grinding Equipment MY1230)Product Description
Longitudinal movement is controlled by hydraulic system\
Transverse movement is controlled by electric motor
Up and down movement is controlled by lift motor
| Specifications | Units | MY1230 | ||||
| workbench | Worktable size (L * W) | mm | 750×300 | |||
| Max. travel of table | mm | 780×320 | ||||
| Table T slot (slot number x slot width) | mm | 1×14 | ||||
| Grinding head | The grinding wheel size (o. d * w * i. d.) | mm | Φ300×30×Φ76.2 | |||
| Distance spindle center line to working table | mm | 520 | ||||
| Grinding wheel speed | 50HZ | r/min | 1450 | |||
| 60HZ | r/min | 1680 | ||||
| The amount of feed | Table longitudinal (left and right) speed | m/min | 3-20 | |||
| Transverse (front and rear) feed handwheel feed | Continuous (stepless) | mm/min | 600 | |||
| Intermittent (stepless) | mm/times | 0-6 | ||||
| Handwheel per turn | mm | 4.0 | ||||
| Handwheel per lattice | mm | 0.02 | ||||
| The vertical (up and down) feed handwheel feed | Handwheel per turn | mm | 2.0 | |||
| Handwheel per lattice | mm | 0.01 | ||||
| Grinding head up and down is fast lifting speed (approximate value) | mm/min | 360 | ||||
| Hydraulic system | Hydraulic motor | kw | 2.2 | |||
| working pressure | Mpa | 4 | ||||
| Fuel tank capacity | L | 100 | ||||
| Maximum flow rate | L/min | 20 | ||||
| Motor power | Spindle motor | kw | 2.2 | |||
| Cooling motor | W | 40 | ||||
| Elevator motor | W | 120 | ||||
| working accuracy | The process surface of the base level of the parallel degree | mm | 300:0.005 | |||
| Surface roughness | μm | Ra0.32 | ||||
| Machine weight | Net weight | kg | 1400 | |||
| Gross weight | kg | 1530 | ||||
| External size (L * w * h) | mm | 1960×1480×1850 | ||||
| Packing size (L * w * h) | mm | 2000×1640×2020 | ||||
Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
