Full-Auto Semi-Auto Auto Replacement Tripod Turnstile

Product Description

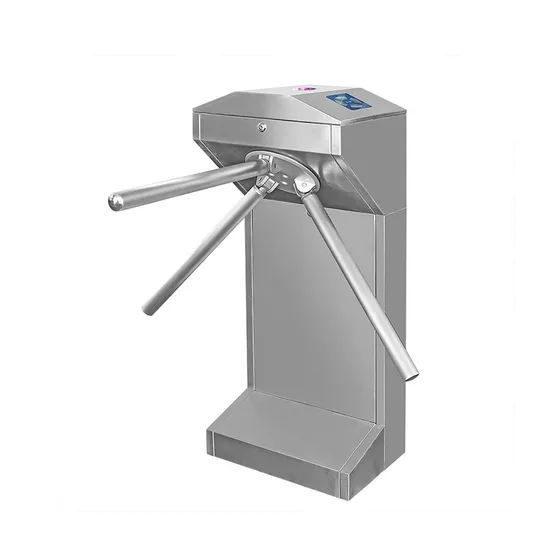

WEJOIN automatic access control face recognition entrance security tripod turnstile
Product Introduction
This series of turnstile adopt the unique technology of our company---the precise photo electricity limit and gear to orient the closure. The turnstile be unlocked and reset because of the specific motor. The closure is very precise and stable. This series of turnstile adopt standard electricity socket. It can read boom code card, ID card, IC card and so on.
There is a series of turnstiles. You can choose the item and specificalion. They can be used in school, metro and chamber and so on. This series is of very high-tech. In order lo guarantee it can run safely, please carefully read this instruclion!
Technical Parameters

Item	WJTS211	WJAT211
Material of housing	304 Stainless steel
Dimension of Housing	420*330*980mm
Length of Pole(out of housing)	490mm
Net Weight	50KG
Max load-bearing of pole	80kg
Driving Force of Pole	3kg
Power Supply	AC220V±10%,50HZ;AC110V±10%,60HZ
Working Voltage of motor	DC12V
Rated Power	50W	36W
Mechanism	Motomatic mechanism	Automatic mechanism
Input Interface	DC 12V electrical level signal, more than 1oms, or DC 12V impulse signal driving current. more than 10ms	Dry contact with the pulse between 200ms and 500ms
Transit speed	25-32 persons/min
Working Temperature	-25ºCC~+55°C
Working environment	Indoor/ Outdoor
Relative humidity	<95%, no condensation

Functions& Features 1). Card reader available, support WEIGNAD 26/34 communication card reader
2). Bi-directional pass/any single direction pass(adjustable)
3). Arm auto-drop when power off and auto rise up when power on and auto stop on obstacle
4). Traffic light indicator/ Pass direction indication
5). Alarm light available(optional function)/Remote control available (optional function)/ Counter available (optional function)
6). RS232 socket available which can connect to computer. It can also connect to computer by Internet LAN socket (Optional function)
More Turnstile Models for you to choose
Advanced Features
COMPANY INFORMATION
SHENZHEN WEJOIN WECHANICAL & ELECTRICAL CO., LTD.
Shenzhen Weijoin Mechanical&Electrical Co. was founded in 2004. It is the first national high-tech enterprise speciallized in research and development, manufacturing and sales of intelligent access control products in China. As one of the Brand Business Enterprises of Guangdong province, WEJOIN so far is also one of the largest manufacturers in access control and management product. Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
WEJOIN MANUFACTURING TECHNIQUE
FAQ
Q1: What is your main products?
A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
Q2: Are you manufacturer? Do you provide ODM / OEM service?
A: Yes, we are manufacturer. WEJOIN provide professional cudtomized serice for global clients.
Q3: I would like to ask if this is with Mifare reader and controller?
A: Yes, there is a controller, our turnstile has control board, can connect with Mifare reader.
Q4: Can we buy this product and grant acess to the user via cell phone app/bar code? What access point options does it come with? Card? Token?
A: Yes, you can connect the turnstile with bar code reader, and other customized access controller.
Q5: What is your MOQ?
A: Any quantity is acceptable.
Q6: How much is 1 set ? Can provide product details? How fast and how much it would cost to ship this item?
A: Please Click here and send your inquiry, then we will send you the price and details in time.
Q7: How about payment option?
A: 30% by T/T, 70% by T/T before delivery.
Q8: Do you have a model that can be used outdoors without further shelter?
A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.
Q9: How much warranty time do you have?
A: Whithin one years, if any problems, we will offer the accessories.
