Ck6185 Lathe Machine CNC Heavy CNC Lathe Machine High Precision High Speed Multifunctional Metal Machine Flat Bed CNC Lathe

Product Description

Product Description

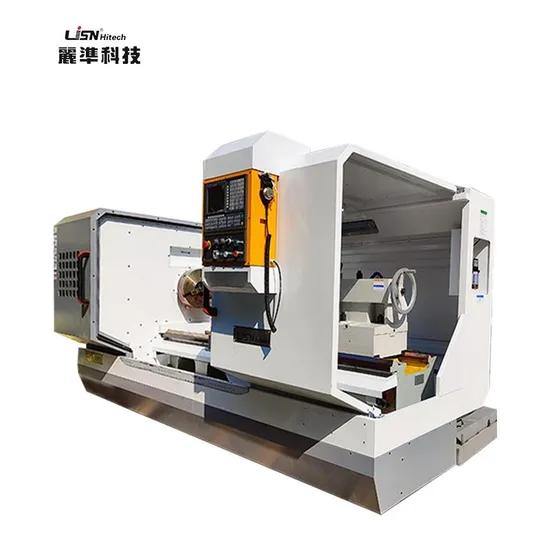

CK-6185-2M is a 2 meter high performance Horizontal slant bed CNC lathe with high rigidity, high stability and high acurracy. The maximum rotary diameter of bed body is φ500mm and the Maximum swing diameter on board is φ260mm. The maximum length of workpiece is 750mm, 1000mm, 1500mm and 2000mm and the maximum turning diameter of the machine is φ500. The machine body castings are made of high strength and high stability material, which provides high stability for the machining process. The excellent casting and making process also extends the use of the machine and ensure there are no nay deformation and rust problems. The machine is equipped with a safety door, which can protect the safety of employees in the process of processing and protect the surrounding environment. The machine control system is CNC 980TB3i model from Guangzhou CNC, the interface operation is simple, which can greatly improve the processing efficiency and reduce the processing cost.
Main Features
Excellent stability Excellent rigidity High performance Safety gate Maximum rotary diameter of bed body: φ500 Maximum swing diameter on board: φ260 Maximum length of workpiece: 750mm, 1000mm, 1500mm and 2000mm Detailed Photos
Product Parameters

Specifications	MODELS→	CK6185-2000
Max. Turning Diameter of The Bed	mm	∅850
Max.Turning Diameter	mm	∅850
Max.Length Of Workpiece	mm	2000
Spindle Speed And Range	rpm	(Low speed)14-120 (Middle speed)40-330 (High speed)100-800
Taper Bore Of Spindle	-	(Metric):120mm 1.2
Spindle Nose	type	C11/D11
Diameter Of Spindle Bore	mm	105
X/Z Rapid Feed Speed	m/min	4/8
Tool Post Capacity	-	4fB (6 optional)
Main Motor Power	KW	15
X Axis Servo Motor Torque	Nm	15
Z Axis servo motor torque	Nm	30
Repeatability Of X-Axis	mm	0.016/0.05
Repeatability Of Z-Axis	mm	0.008/0.016
Tape Hole Of Sleeve	-	MT5
Machine Overall Dimensions (About)	mm	4404x2065x2050
Net Weight(About) Kg	KG	6500

Company Profile
Lizhun Machinery Co., Ltd. is a company focused on innovation, development and production of CNC machining centers and CNC lathes. Adhering to the spirit of innovation and excellence, the company has provided many famous enterprises at home and abroad with extremely superior machines in performance, precision and quality. In the future, Lizhun will continue to maintain the spirit of innovation and excellence to provide strong and lasting support for the processing industry, and provide excellent processing machines for 5G, aviation, automobile and other industries.
Lizhun Machinery Co., Ltd. is located in Dongguan, Guangdong province. The product exhibition hall is located in Songshan Lake, Dongguan City, with beautiful scenery and elegant working environment. The factory is located in Dalingshan, with complete facilities and experienced staff. The staff has many years of experience in innovation, development, assembly and production, which ensures that each machine has extremely outstanding quality and performance when it leaves the factory.
The factory covers a large area and has multiple production lines to ensure production capacity and supply capacity. Excellent capacity and supply capacity can ensure that customers can receive the machine within the agreed time which can avoid a series of problems caused by insufficient capacity.

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.
