Mstat Hot Selling Woodworking Machinery Bed Slats Cutting machinery

Product Description

Company Profile
MSTAR MACHINERY CO., LTD, nestled in the vibrant Linyi city of Shandong, China, stands as a beacon of modern, professional excellence in the realm of woodworking machinery. Specializing in the research, development, production, and distribution of cutting-edge woodworking machines, we have set the industry standard with our innovative solutions. Our flagship products include the high-speed spindleless veneer peeling line, sanding machines, hot presses, saws, and debarkers. Among them, our high-speed automatic veneer peeling line has emerged as the industry benchmark, celebrated for its unparalleled efficiency, energy conservation, time-saving capabilities, and labor-saving benefits.
Through our commitment to providing superior products, impeccable service, and honest sales practices, MSTAR has garnered global acclaim. We earnestly invite you to join hands with us in a fruitful collaboration, as we look forward to achieving new heights together. Product Description
The reason why wooden bed boards tend to be constructed with wooden strips is mainly based on three considerations.
Firstly, from the perspective of material properties, commonly used engineered woods such as spruce and pine can obtain sufficient strength and stability after appropriate treatments such as planing and dyeing, meeting the load-bearing requirements of the bed board.
Secondly, considering ergonomics, the wooden strip structure can provide better load-bearing capacity, prevent excessive bending or breakage of the bed board, and can undergo elastic deformation according to the center of gravity and body shape of the human body, improving sleep comfort.
Finally, the wooden structure also conforms to modern people's pursuit of environmental protection and health. Its natural green, ventilated and breathable characteristics help reduce moisture and promote human health. Therefore, the construction of wooden strips is widely used in the design of wooden bed boards

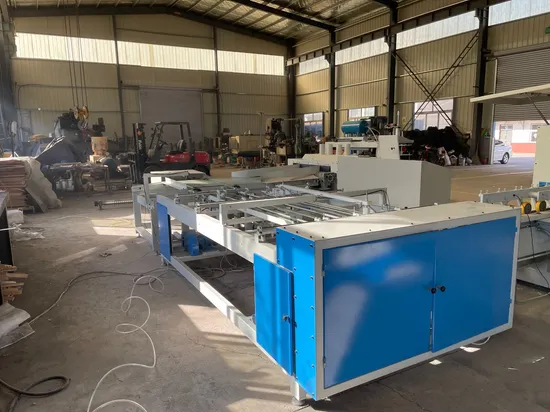

1. Automatic cutting part: It is firmly attached to the workbench by vacuum suction. Chain driven worktable moves forward and backward. The saw blade motor adopts a high-speed electric spindle. The width adjustment uses a servo motor to drive the ball screw, which has high accuracy and fast speed.2.After the edge cleaning at both ends is completed, the wood is transported to the designated location and then sent to the cutting section for segmentation by the adsorption device. The segmentation speed is 12 meters per minute. After the segmentation is completed, enter the conveyor belt and move forward to align with the front end of the conveyor belt. The conveyor rises to lift the wood and horizontally transports it to the distributor.3.Part convey material is clamped by a servo motor driving a cam, and pushed out by the pushing force of a hanging rubber wheel. Send it into the chamfering machine.

overall size	8200*7000*1800MM
total power	about 60KW
double saw motor	7.5KW*2
double saw rotate speed	6000RPM
multi saw motor	15KW
multi saw rotate speed	2940RPM
two ends milling motor	8KW*2
two ends milling rotate speed	6000RPM
max working length	1500MM
min working length	650
max working width	70
min working width	38
working size 38mm,53mm,62mm,68mm, 51mm, 55mm.

WORKSHOP

Packaging & Shipping
OUR OFFICE

Our Project

FAQ

Q1:Can you customize products for clients?
A1: Yes .We can customize and produce woodworking machines according to the customer's requirements or drawings.

Q2:What about your products quality?
A2:We can provide you samples for quality inspection. If you order, we guarantee the quality is same with sample. In case of quality problem, we can sign agreements and our company will perform the duties.

Q3:How can we trust your factory?
A3:We recommend that you come to our factory to see the goods,to verify the real situation of the products, and know more about our factory.

Q4:Why does the price often change?
A4:The configuration of motor and control system determines the change of price. Different quality determines different price.

Q5:What about the contract signing?
A5: If you're satisfied with the products and our service, you can sign the contract with us, pay the deposit Then we'll produce the machines as soon as possible. If you are far away, we can sign the contract by fax. We will ensure the quality of the products and the accessories are complete.

Q6: How about delivery?
A: when the product is ready, it can be delivered to you after your full payment. We'll provide technical guidance.
MSTAR COMPANY, is the original and professional manufacturer for plywood production machinery, we can supply you full wood veneer peeling line for the whole plywood .
This spindlelss peeling is very popular in veneer and plywood industry in the world.
We are able to provide you all the best solutions during your plywood production!
WE LOOK FORWARD TO COOPERATE WITH YOU FOR LONG TERM BUSINESS ON MUTUAL BENEFITS!
