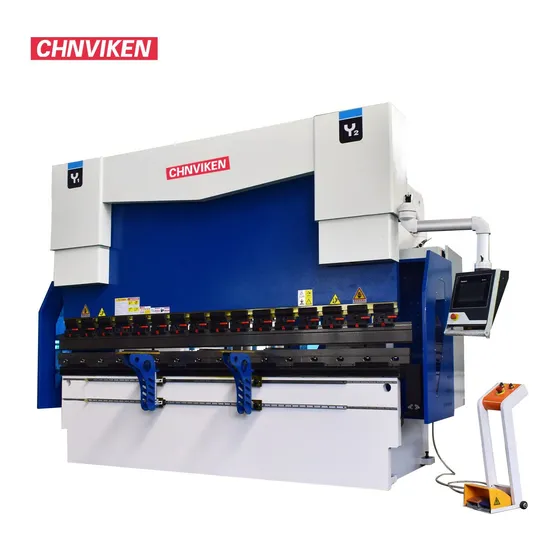

Hydraulic CNC Press Brake with Delem Da53t System Sheet Metal Bending Machine
| US$10,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WE67K-100T3200
Condition
New
Certification
ISO 9001:2000, CE
Automation
Semi-Automatic
Suitable for
Aluminum, Carbon Steel, Stainless Steel
Type
Cnc Bending Machine
Main Motor
Siemens
Oil Pump
Sunny
Hydraulic System
Rexroth
Controller
Da53t
Transport Package
Seaworthy Packing
Specification
3500mm*1800mm*2500mm
Trademark
CHNVIKEN
Origin
Anhui
HS Code
8462299000
Production Capacity
5000pieces/Year
Packaging & Delivery
Package Size
3000.00cm * 2000.00cm * 2500.00cm
Package Gross Weight
10000.000kg
Product Description
Main Features:1.Totally EU streamlined design, Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
2.Hydraulic synchronised positive stop design,and by Delem cnc programmable controller assuring accurate repeatability & ease of use.
3.Integrated hydraulic system(Bosch-Rexroth form Germany)allowing rapid approach switching automatically to slow bend.
4.Inverter with Delem System operated back gauge with quality support fingers also with vertical adjustment
5.Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays.
6.Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety.
Product Parameters
| Bending Capability | 80/3200 | 100/3200 | 100/4000 | 125/3200 | 125/4000 | 160/3200 | 160/4000 |
| Nominal Force(KN) | 800 | 1000 | 1000 | 1250 | 1250 | 1600 | 1600 |
| Worktable Length(mm) | 3200 | 3200 | 4000 | 3200 | 4000 | 3200 | 4000 |
| Column Distance(mm) | 2650 | 2610 | 3100 | 2610 | 3100 | 2600 | 3050 |
| Throat Depth(mm) | 250 | 320 | 320 | 320 | 320 | 320 | 320 |
| Ram Stroke(mm) | 120 | 120 | 120 | 120 | 120 | 180 | 180 |
| Main Motor Power(KW) | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 11 | 11 |
