Factory Ultrasonic Herb Solvent Extraction Equipment with Discount

Product Description

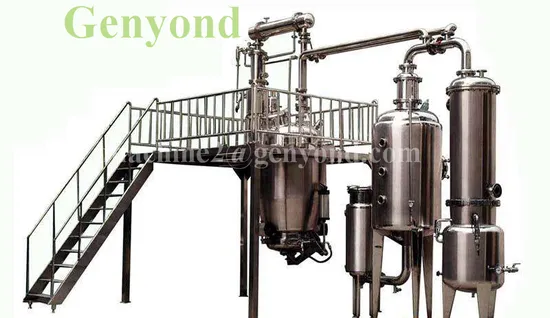

Introduction of Ultrasonic Herb Solvent Extraction Equipment
It is suitable for normal pressure and temperature ultrasonic extraction, ultrasonic extraction, dynamic hot
reflux extraction and extraction by organic solvent recovery and other process in Chinese traditional medicine,
health products, biological, pharmaceutical, cosmetic and food industries.The equipment can be dynamically
continuous ultrasonic extraction.This is the ideal equipment for colleges and universities, research institutes,
research and development departments and laboratories of enterprises and institutions,and many varieties,
small batch production of pharmaceutical plant.
Main Datas of Ultrasonic Herb Solvent Extraction Equipment

Model	Capacity	Hot water generator power	Material	Heating Area of Extraction Tank	Condensing Area of Condenser	Vacuum pump power
GYS10	10L	6KW	SUS304	0.21M2	0.22 M2	0.55KW
GYS20	20L	8.8KW		0.28 M2	0.5 M2	0.55KW
GYS30	30L	10KW		0.33 M2	0.72 M2	1.5 KW
GYS50	50L	12KW		0.5 M2	0.83 M2	3KW
GYS100	100L	24KW		0.98 M2	0.95 M2	4KW
GYS150	150L	25KW		1.45 M2	1.2 M2	4KW
GYS200	200L	27KW		1.85 M2	1.5 M2	6.5 KW
GYS300	300L	35KW		2.85 M2	2.3 M2	8KW

Equipment control system: (two choices according to demand)

NO.	functional description	Digital display control system	PLC touch screen automatic control
1	Heating temperature control	Digital temperature control table	Dynamic display of touch screen, setting
2	Ultrasonic power control	digital control	The LED screen dynamic display, setting, control
3	Time display	digital control	digital control
4	Key valve	Manual/ball valve, butterfly valve	Pneumatic valve/solenoid valves
5	Working condition	digital display	Touch screen process shows
6	Parameters of the switch control	Manual push button/button	Touch screen display, setting, control

Parameters of Ultrasonic Herb Solvent Extraction Equipment
Ultrasonic generator: 28 KHZ ,55 KHZ). Filter material: stainless steel material basket,stainless steel filter. Ultrasonic control: digital ultrasonic control The extracting tank heating area: 0.25 M2 Ultrasonic timer: digital Heating timer: digital Interlayer water pressure: the atmospheric pressure Water extraction temperature: room temperature to 95 degrees,adjustable Alcohol extraction temperature: room temperature to 73 degrees,adjustable Power supply: single 50 HZ, 220 V Extraction tank volume: 20L (Three layers of insulation hot water heating system.) Extraction tank inside the water cycle: small heat pumps. Material: the whole machine all adopt high quality food grade SUS304 2B, suitable for weak acid, weak alkali cleaning equipment The equipment surface treatment: mirror polishing tank surface, outer surface drawing inferior smooth processing. Device size: 450*250*550 (length * width * height,can be customized according to customer's requirement We are factory and good at essential oil extracting plant and machines,design and manufacturing.welcome your inquiry!
We are factory and good at oil distillation/extracting plant and core machines,design and manufacturing.welcome your inquiry!
