Low Price 1L 2L 3L 4L Famous Plastic Oil Bottle Making Machine Blow Molding Machine

Product Description

Company Profile

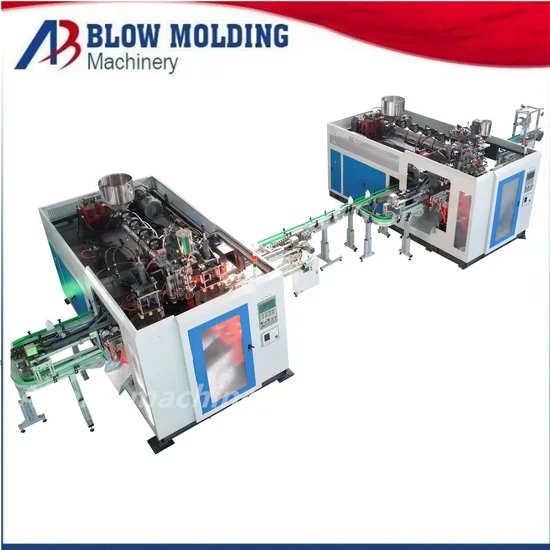

Famous Plastic Oil Bottle Making Machine
Product Description
The features of this machine:
(1) Famous Plastic Oil Bottle Making Machine is suitable for producing PE, HDPE, PP,
PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the
max. Product volume is up to 8L.
(2) Single station single die head design, very easy to operate and maintenance.
(3) Most components of the blow moulding machine are from famous world brand.
(4) Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance
Company Philosophy and Exhibition :
1. Development, Apollo's pursue. Innvation, Apollo's spirit.
2. We always put our coustomers satisfaction and interests in the first place.
3. Our products have a great reputation in the blow molding machine and our products are warmly welcomed by our new and old customers.Not only our products sold in our domestic land, our products also exported to overseas.
Product Parameters

Max. Product volume	8 L
Out put capacity	750*2 pcs/h
Screw diameter	75MM
Screw L/D ratio	24:1 L/D
Screw drive power	22 KW
Screw heating capacity	7-8 KW
No.of heating zone	4 zones
Output of HDPE	100 KG/H
Oil pump drive power	7.5 KW
Clamping force	80 KN
Max.size of mold	400*430 MM
Mold stroke	170-520 MM
Max.die diameter	170 MM
Blowing pressure	0.6 mpa
Air Volume	0.8 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	80 L/MIN
Size of Machine	4.2x2.2x2.7 m
Weight of machine	7.5 Ton

Assembly Processes:
Come to our company, you can clearly see every step of our machine!
1. Support assembly and test procedures.
2. Provide work flow diagrams.
3. Show you around to see the layout of our company.

Contact us:
Dear customer,
Thanks for your visiting!! Famous Plastic Oil Bottle Making Machine
APOLLO Machinery is a professional manufacturer for blowing machine . We treat every customer seriously. We will offer the most suitable soluition for you! We are ready to solve the problem for you!

So in order to offer you the best quotation and the most suitable machine , please kindly let us know when you make the inquiry. Such as:
1. What kind of bottle or contanier you want to make? what's the volume ? Pictures would be helpful!
2. What will you filling into the bottle?
3. What's the capacity you really want?
Looking forward to hearing from you!
Any more questions, please feel free to contact us!
