Basic Info.
Material Feature
Oil Resistant, Heat Resistant, Fire Resistant
Application
Chemical Industry, Grain Transport, Mining Transport, Power Plant
Place of Origin
Hangzhou, Zhejiang Province
Transport Package
Customized
Packaging & Delivery
Package Size
200.00cm * 75.00cm * 85.00cm
Package Gross Weight
270.000kg
Product Description

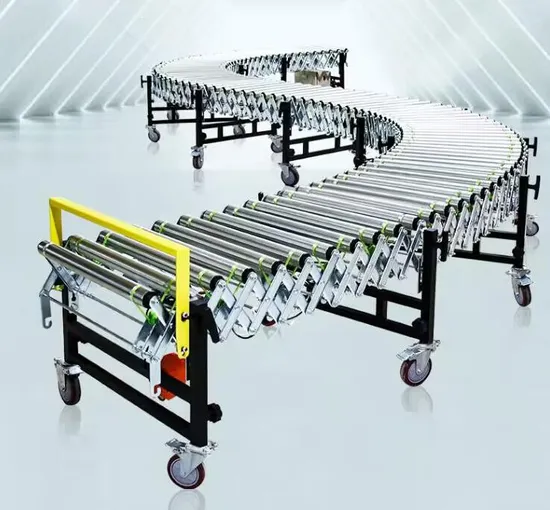

Product Description Powered Flexible Roller Conveyor is an extendable powered automatic roller conveyor with controllable conveying speed & direction and adjustable supporting leg height. Having enough power supply by one mini motor per section, it is well qualified to intensively transport goods especially with flat bottom in the warehouse/storehouse, workshop, factory, harbor, dock, etc. In addition, it can be applied to such situations as production-packing line, temporary conveying line and goods distribution line. It satisfies the easy, quick and efficient goods delivery.
Product Parameters
Overall length | 4500mm |
Roller width | 600mm |
Roller diamter | 50mm |
Roller shaft | 12mm |
Wall thickness of roller | 1.5mm |
Whole maching height | 700-1100mm |
Whole maching weight | 270kg |
Telescopic ratio | 1:2 |
Roller center distance | 125
|
Loading Capacity | 45kg/m |
Voltage | 110/220V |
Power | 60W per section |
Speed | 10-30m/min |
Detailed Photos
