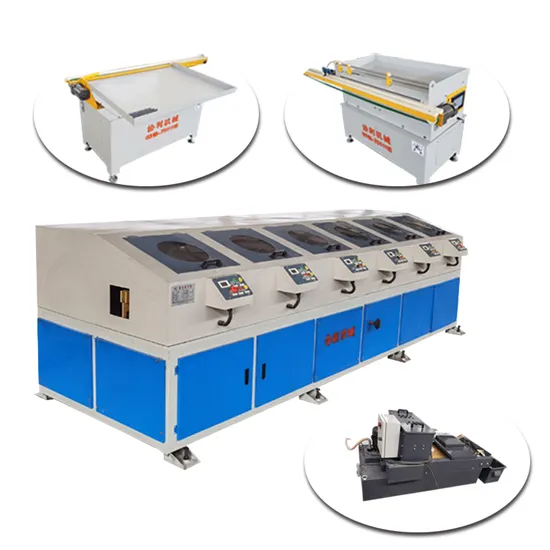

Xieli Machinery Six Station Round Tube Polishing Machine Stainless Steel Pipe Outer Wall Rust Removal Polishing Machine

Product Description

Product Parameters

Project/Model	WX-DWZ-2	WX-DWZ-4	WX-DWZ-6	WX-DWZ-8	WX-DWZ-10
Input voltage(v)	380v 50hz,3P
Input power(kw)	8.6	18	26.5	35.5	44
Polishing wheel specification(mm)	250/300*40/50*32(Width can be assembled)
Guide wheel specification(mm)	100*200
Polishing wheel speed(r/min)	3000
Guide wheel speed(r/min)	Stepless speed regulation
Machining diameter(mm)	4-100
Processing efficiency(m/min)	0-20
Surface roughness (um)	Ra0.02
Processing length(mm)	100-6000
Wet water cycle dust removal	optional
Dry fan dust removal	optional
Feeding mode of grinding head	Digital display electric adjustable
Machine tool Total weight about(kg)	800	1600	2400	3200	4000
Equipment Overall dimension(m)	1.4*1.2*1.0	2.6*1.2*1.0	3.8*1.2*1.0	5.0*1.2*1.0	6.2*1.2*1.0

Main uses and scope of application
The round pipe polishing machine is mainly used for rust removal and polishing in industries such as hardware manufacturing, vehicle accessories, hydraulic cylinders, steel and wood furniture, instrument machinery, standard parts, and before and after electroplating. It is completed in one go from rough polishing to fine polishing.
The round tube polishing machine is the best choice for polishing round tubes, round rods, and slender shafts.
The round pipe polishing machine can be installed with various polishing wheels, such as thousand blade wheels, hemp wheels, nylon wheels, wool wheels, cloth wheels, PVA wheels, etc,
The guide wheel has stepless speed control, which is simple and convenient to operate. The steel structure is optimized for more stable performance. The reserved fan port can be equipped with a dust removal fan or a wet dust removal system, and automatic loading and unloading mechanisms can be matched according to the length of the processed parts.
