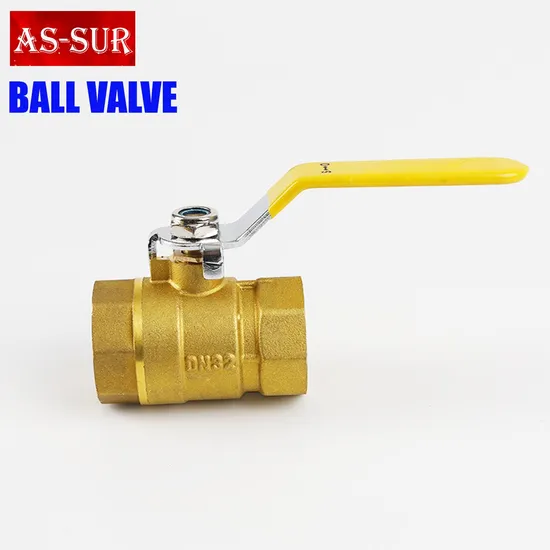

Reduce Pressure Industrial Water Gas Oil Control Brass Ball Valve
| US$0.84-0.98 | 2,000 Pieces (MOQ) |
Basic Info.
Model NO.
AS-BV001
Connection Form
Thread
Driving Mode
Manual
Nominal Pressure
PN1.0-32.0MPa
Channel
Straight Through Type
Structure
Fixed Ball Valve
Type
Fixed Ball Valve
Function
Relief Valve
Temperature
High Temperature
Standard
ISO228(BS2779), Bsp, NPT, JIS
Application
Industrial Usage, Water Industrial Usage, Household Usage
Ball
Brass Ball
Stem
Brass Stem
Bore
Full Bore
Thread Stardard
ISO228(BS2779), Bsp, NPT, JIS
Working Temp.
-20c to + 120c
Certificate
Ce, UL
Sealing
Teflon PTFE
O-Ring
NBR
Handle
Steel Handle with Plastic Cover
Finishing
Nickle, Chrome Plated
Name
Industrial Brass Water Ball Valves
Transport Package
Cartons
Specification
1/2" to 4"
Trademark
OEM
Origin
Zhejiang, China
HS Code
8481804090
Production Capacity
50000PCS Per Month
Product Description
Pressure Reducing Industrial Radiator Water Gas Control Brass Ball Valve2 pcs full bore brass Ball Valve,conform to BSEN13828-2003
Including 2PC/3PC gas ball valve and water meter ball valve.
1.Material: Hpb57-3%, Hpb59-1%, C37700, C3604, CW614N,CW617N,C36000 and DZR free brass
2.Nominal pressure: 2.5MPa
3.Suitable medium: Water, no-causticity liquid, and steam
4.Working temperature: -20 to 120° C
5.Brass ball with chrome plating and steel handle stem or iron handle
6.Full port Size: 1/2"-4"
7.Female x Female
8: Packing: 1/2" 1pc/PE bag; 12pcs/Inner box; 10inner boxes/Carton
3/4" 1pc/PE bag; 10pcs/Inner box; 8 inner boxes/Carton
1" 1pc/PE bag; 8pcs/Inner box; 6 inner boxes/Carton
9: Shipping:goods will be shipped by sea after 25-35 days after receiving deposit
10: MOQ: 1000PCS
Full Port, Brass Ball Valves are used in commercial and industrial applications for a full range of liquids and gases.They feature a bottom-loaded blowout-proof stem, virgin PTFE seats, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated brass ball, brass adapter, and steel handle or iron handle.Thread: BSP, NPT
.
Customized Designs are Accepted,We can produce various ball valve according to your request.
| Item Code | Item Description | Size | Weight/Grams | Handle Weight/Grams | Pcs/Ctn |
| AS-BV001 | brass ball valve for water and gas with steel handle nickle plated | 1/2" | 170g | 35g | 100 |
| 3/4" | 240g | 35g | 100 | ||
| 1" | 355g | 50g | 80 | ||
| 1 1/4" | 520g | 70g | 48 | ||
| 1 1/2" | 740g | 70g | 32 | ||
| 2" | 1150g | 100g | 24 | ||
| 2 1/2" | 2000g | 200g | 10 | ||
| 3" | 3000g | 200 | 6 | ||
| 4" | 4700g | 200g | 6 |
| Basic Technical Dates | |||||
| 1.Brass Material Used | |||||
| HPB57-3 HPB59-1 | CW614N CW617N | CuZn39Pb3 CuZn40Pb2 | Lead Free Copper | C3604 | |
| 2.BasicTechnical Dates | |||||
| Type Of Thread | Surface Treatment | Temperature | Pressure | Medium | 100% Leakage Testing |
| ISO228/BSP/NPT/JIS Standard | Orgianl Color Nickel Plated Polished Chrome | 0≤T≤ 120ºC | 1.6MPA | Water/oil/gas | |
| 3.Description Of Parts | |||||
| Ball | Stem | Sealing | Handle | Nut | |
| Brass with Chrome Plated | Brass/Iron | PTFE(Teflon) | Iron Handle Aluminum Handle Butterfly Handle | Brass/Steel/Iron | |
| Iron With Chrome Plated | |||||
