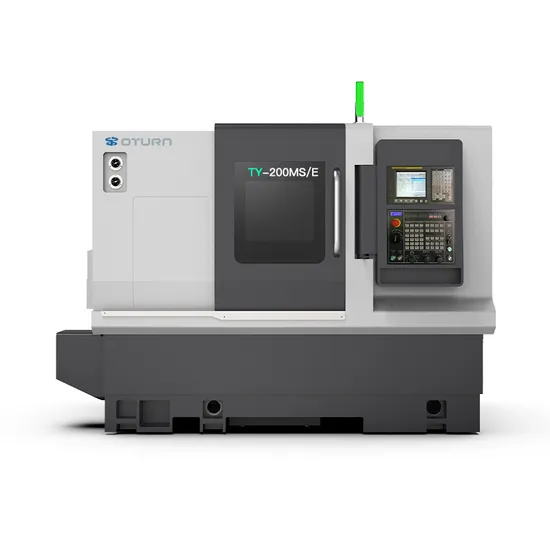

Double Spindle Slant Bed CNC Lathe 12 Stations Live Tool Turret Large Horizontal Turning and Miliing Center with High Precision Fanuc

Double Spindle Slant Bed CNC Lathe 12 Stations Live Tool Turret Large Horizontal Turning and Miliing Center with High Precision Fanuc

US$28,500.00-182,000.00 1 Set (MOQ)

Basic Info.

Model NO.
ETY200MS
Type
Turret Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Control System
Fanuc, Siemens, Mitsubishi
Spindle
A2-6,A2-8,A2-11
Chuck
6,8,10,12inch
Tool Turret
Vdi or Bmt
Motor Power
11,15,18.5,22kw
Transport Package
Plywood Case
Specification
2600*2100*1900
Trademark
Oturn
Origin
China
HS Code
8458110090
Production Capacity
1000/Year

Packaging & Delivery

Package Size
260.00cm * 210.00cm * 190.00cm
Package Gross Weight
4200.000kg

Product Description


Product Description
High-strength HT300 one-piece structure casting iron bed, 30-degree step type flat rail structure, application of finite element analysis, excellent overall mechanical rigidity and stability, and can maintain long-term reliable accuracy, processing stability and tool life, stress relief treatment improve accuracy and stability, high-strength roller rail design, drive system adopts screw pre-tension design, improve response rigidity.
Both ends of the workpiece can be processed at the same time in one clamping, which greatly simplifies the manual operation, increases the output and reduces the process. The second spindle is capable of full turning and can express workpieces during machining, reducing cycle times.
1.Direct drive synchronous electric spindle device: magnetic ring type incremental encoder (Sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds.
Effectively eliminate the vibration of spindle, and the deflection accuracy of the nose end is within 0.002mm. Improve the surface finish of the workpiece.
The rear-mounted rotor is used to facilitate installation and maintenance.
The spindle motor is equipped with cooling system to suppress the influence of thermal displacement and ensure a constant working temperature of the spindle. The spindle system has passed the strict dynamic balance test. It has good precision retention, high rigidity and high efficiency, so that the machine can not only complete finishing machining, but also rough machining and heavy cutting for users. It is especially suitable for mass production of complex shapes and high finish product.
2.High rigidity integral servo power turret. With rapid and precise tool change performance. The tool holder installation used high-rigidity BMT interface, and the power transmission shaft is driven by servo spindle motor.
3.The machine is equipped with THK linear guide rail and ball screw. The heat-treated and precision-ground ball screw can ensure the best precision and durability. Each axis adopts a direct transfer shaft structure and a double-anchor pre-relay method, which can minimize thermal displacement and greatly improve machining accuracy. High rigidity, large size, and heavy-duty linear slide rails can keep the accuracy of the machine unaffected when it is impacted, the displacement is smooth and the noise is low, which can prolong the service life.
4.Standard configuration FANUC system, and the feed drive adopts FANUC servo motor.
5.Perfect hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components, greatly reducing the failure rate. The design of the hydraulic and lubrication system is simple and reliable.
6.Using Taiwan rotary chuck, oil cylinder and automatic chip removal device, which can greatly reduce the labor intensity of the operator and realize safe and efficient production. The above functional components can be controlled by programming. Special fixture.

Product Parameters

Name Unit TY200MS
The largest diameter rotating bed mm Ф660
Max. processing diameter mm Ф320
Max.Swing Over Cross Slide mm Ф300
Max. processing length mm 400
Bar diameter mm Ф46/46
Spindle nose / A2-5
Spindle hole diameter mm Ф56
Max. speed of spindle rpm 5500
Spindle motor power kw 17.5
Spindle motor power Nm 62-125
Fydraulic Cylinder/Chuck / 6"
Spindle nose / A2-5
Spindle hole diame mm Ф56
Max. speed of spindle rpm 5500
Spindle motor power kw 17.5
Spindle motor power Nm 62-125
Hydraulic Cylinder/Chuck / 6"
X/Z/S motor power kw 2.5/2.5/1.2
X/Z travel mm 210/490
S travel mm 440
X/Z/S axis moving fast mm/min 24/24/24
Slide rail type mm 35roller
Positioning accuracy mm ±0.005
Repeat positioning accuracy mm ±0.003
The knife tower type / BMT55-12T
Power cutter tower motor Kw/Nm 4.5/11-27
Max. speed of rpm 6000
The knife biock specifications mm 25*25
Circular cutter holder specification mm Ф40
The adjacent tool change time sec 0.2
Machine size mm 2600*2100*1900
Machine Weight kg 4200
Cutting fluid tank volume L 150
Volume of hydraulic unit box L 40
Hydraulic oil pump motor power kw 1.5
Volume of lubricating oil tank L 2
Auto lube pump motor power W 50
Cooling water pump power W 750


Products Configurations

Company Profile

Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines?
A: Please tell me your specifications, and we will help you select the best model, or you can choose the exact model yourself. Alternatively, you can send us the product drawings, and we will recommend the most suitable machines for your needs.
Q2: What are the main products of your company?
A: We specialize in all kinds of machines, such as CNC Lathe Machine , CNC Milling Machine, CNC Turning Machine, Vertical Machining Center, Horizontal Machining Center, Lathe Machines, Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
A: We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong. You are warmly welcome to visit us.
Q4. How do you transport it?
A: Provide Transportation Solution DDP/CIF/FOB/FCA.
Q5: What are the Payment Terms?
A: T/T, 30% initial payment when ordering, 70% balance payment before shipment.
Q6:What's the OMQ?
A: 1 set. (Only some low cost machines will be more than 1 set )
We want to know:
1. We strongly suggest you tell us the size, and material of your workpiece for our evaluation, if possible, better to send us a workpiece drawing so that we can recommend you the most suitable model.
2. If need a CIF Price, please kindly tell us the port of destination.
