Anon Hot Sale High Quality Pneumatic 4 Rows Corn Seeder Planter Maize Seeder Corn Planter

Product Description

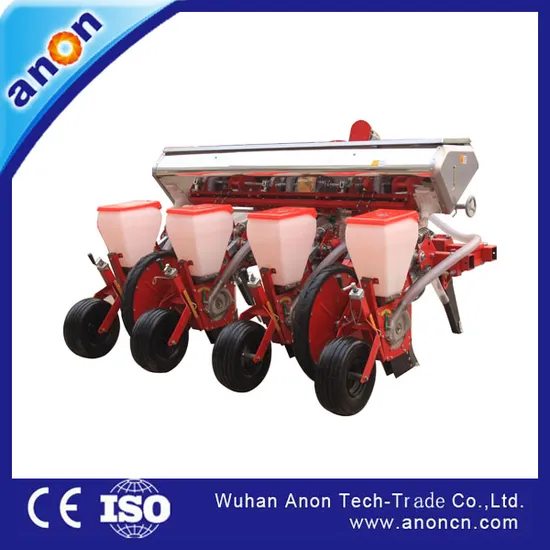

Anon Hot Sale High Quality Pneumatic Corn Seeder Planter Maize Planter Corn Seeder

Type	Pneumatic corn maize planter
Size	1850*2250*1350mm
Weight	550kg
Rows	4
Mounted power	40-60hp
Fertilizer hopper capacity (L)	260
Seeds hopper capacity (L)	20*4
Row spacing (mm)	60( can be adjustable)
Planting distance (mm)	80,100,120,130,140,150,160,170,180,200,230,250,280,300,330,360
Sowing rate	>92%
Fertilizing depth (mm)	20-50
Seeding depth(mm)	30-60(the distance to the seed)

1. It can be used to sow corn, soybeans, sunflowers, sorghum, peanuts and other crops, powerful.

2. The parallel four-bar contoured floating mechanism ensures uniform seeding depth and uniform seedling uniformity.

3. It adopts French imported technology fan, which has large air volume, low power consumption and low noise.

4. Highly efficient, adaptable to farms and cooperatives.

5. Copying and suppressing mechanism: adopt beach motorcycle wheel, large contact area, good copying effect, good pressure and vacuum tyre suppressing effect.
This planter is matched with a large tractor and adopts a three-point suspension device to connect to the host. The fan is driven by the output shaft of the tractor through a universal joint.
This machine has the functions of seeding and fertilization, and is suitable for spring rotary tillage to sow corn, oil sunflower, soybean and other crops (different crops need to buy different seeding trays). While sowing, the granular fertilizer is sowed into the ground to promote the early seedlings. Growth, early and strong.
The machine's seed metering device is driven by the ground wheel, and the air suction seed metering mechanism can realize single seed precision seeding, so that the seeding is accurate, does not damage the seeds, saves the seeds and saves labor, and the seedlings are uniform and strong.
This planter is equipped with a sliding knife opener, equipped with a safety spring to protect the machine during operation. Each row of transmission shafts are connected into one body, unified drive, the speed is one to one, the transmission power is large, each seeding assembly can independently complete all the seeding processes such as ditching, seeding, discharging, soil covering, and suppression under the tractor's traction. The seeding row spacing It can be adjusted as needed.
