Low Cost Universal Milling Machine X6323 for Metal Milling Machine Price

Product Description

China Low Cost Universal Milling Machine X6323 For Metal Milling Machine Price

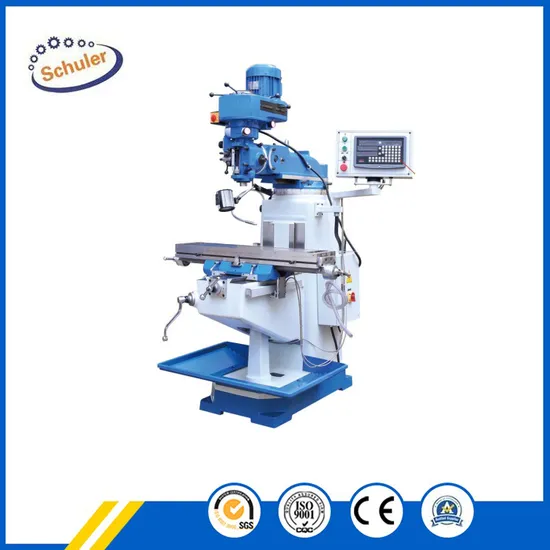

Product picture:
China Low Cost Universal Milling Machine X6323 For Metal Milling Machine Price
Performance:
1.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
2.Work Table Made by HT200-250 High Strength Cast Iron
3. With the horizontal milling function
4.Plastic Guide Way Increase The Precision And Service Life
5.Three Axis can Fix (X/Y/Z) Automatically Feed .
Standard Accessories:
1.milling chuck sets
2.Reducing sleeve 7:24ISO50/MS4 and 40/MS4 3.Hexagonal Spaner 5 and 10
4.Stay wrench S21-24 and S27-30
5.Horizontal milling cutter arbor 7:24 ISO50 27 6.Horizontal milling cutter arbor 40
7.Draw bar M24 (on the machine)and M16
8.work lamp
9. cooling systerm 10.universal milling head XC63T4A
Optional Accessories:
1.X/Y power feed
2.Z axis lifting motor
3.three axis sino dro
4.QH200 flat vice
China Low Cost Universal Milling Machine X6323 For Metal Milling Machine Price Technical Parameters:

Model		X6323A	X6323B
Table size(mm)		230x1060(9''x42'')	230x1246(9''x49'')
Long travel(mm)		650	840
Cross travel(mm)		305
Vertical travel(mm)		400
T-slot No. and size		3x16
Ram travel(mm)		312
Distance from spindle nose to table surface(mm)		15-415
Spindle hole taper		Standard:R8 Optional: ISO30/ISO40
Spindle travel(mm)		127
Spindle speed		Standard: 16steps Shiftgrade:50HZ 65-4500 60HZ:80-5440
		Optional : stepless Variable: 65-4500
Auto quill feed		Three steps: 0.04/0.08/0.15mm/revolution
Spindle motor		2.25kw/3HP
Head swivel		90°
Head tilting		45°
Dimension of package	One miller per case	1400x1476x2030
	Two miller per case	1450x1570x2080
	Three miller per case	1450x2180x2080
G.W.		1100	1160

Brand Image:
As a professional manufacturer of milling machines, we want our customers to know of our commitment to providing the latest products to all customers.
China Low Cost Universal Milling Machine X6323 For Metal Milling Machine Price Details pictures :
China Low Cost Universal Milling Machine X6323 For Metal Milling Machine Price Package delivery:
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
Agents Wanted:
We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
Payment:
We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment) If any questions pls feel free to contact me
