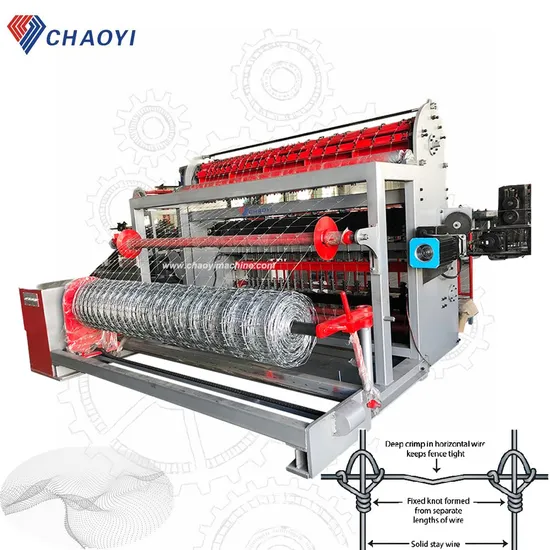

New Type Automatic Grassland Fixed Knot Fence Weaving Making Machine
Basic Info.
Model NO.
CY-2438
Style
Horizontal
Warranty
1 Year
Selling Units
Single Item
Key Selling Points
High Quality
After-Sales Service Provided
Online Support
Weight (Kg)
0006
Wire Diameter (mm)
1.8-3mm
Machine Type
Wire Mesh Making Machine
Core Components
Plcgearbox,Motor,Gear
Place of Origin
Hebei,China
Brand Name
Chaoyi
Single Gross Weight
1.000kg
Machinery Test Repori
Provided
Video Outgoing-Inspection
Provided
Model Number
Lw-3
Power (Kw)
17
Single Package Size
20X15X10cm
Specification
CY-1880
Trademark
CHAOYI
Origin
Hebei, China
HS Code
8463300000
Production Capacity
20sets/Month
Product Description
Product DescriptionNew type automatic grassland fixed knot fence weaving making machine Field Game fence (fixed knot) machine is used to weave wrap-around fence. It can weave the diameter wire and weft wire together automatically. It is developed after many years since our company has independent intellectual property rights, self-made. It uses sophisticated computer control, advanced production technology. With novelty, high degree of automation, operational safety and reliability, easy operation, long life and low prices. Product can be made neat and beautiful, diverse specifications.
| SPECIFICATIONS FOR weaving making machine | |||
| Special type can be made according to clients' requirements | |||
| Model Parameters | 18-2080 | 20-2438 | |
| Maximun fence width | 2080mm(82'') | 2438mm(96'') | |
| Line wire spacings | 76mm(3'')x6+100mm(4'')x2+127mm(5'')x2+150mm(6'')x3+178mm(7'')x4 | 76mm(3'')x6+100mm(4'')x2+127mm(5'')x2+152mm(6'')x3+178mm(7'')x6 | |
| Line wire spacing | 18 | 20 | |
| Stay wire spacings | 75mm,150mm,225mm,300mm,450mm | ||
| Edge wire size | Φ2.5-3.0mm | ||
| Line wire size | Φ2.0-2.5mm | ||
| Stay wire size | Φ2.0-2.5mm | ||
| Knot wire size | Φ2.0mm, Φ2.2mm | ||
| Max length of roll | 100m/roll | ||
| Stay wires per minute | 25row/min | ||
| Total Machine weight | 7Ton | 8Ton | |
| Approximate Floor Area Pequired | 10mx20m | 11mx22m | |
It can weave various kinds of New type automatic grassland fixed knot fence weaving making machine specifications as follow:
Application
| Horse grassland fixed knot fence | Grassland fence | Deer fence |
Product Detail
| Bening fence Part | Alarm sensors | PLC control |
PLC Touch Screen Controller Fixed Knot Fence machine is controlled by PLC automatic controller, so only one person is needed to operate it. | Making mesh Agency 1.Automatic Weaving fixed knot fence, as the picture. | Input wire agency 1.Automatic Fixed Knot Fnece Machine Input wire, as the picture. 2.Automatic Mesh size mould, as the picture. Fence Rolling Agency 1. Automatic fence rolling, as the picture. . |
