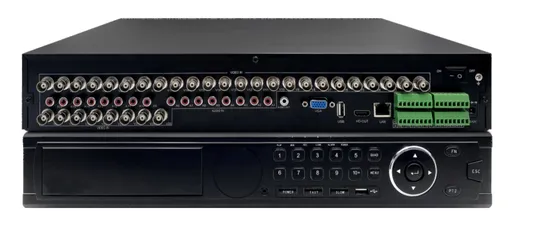

32 Channel 4 HDD CCTV IP Ahd Tvi Cvi Camera Hybrid 4CH Digital Video Recorder DVR Xvr HVR
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
SE-M5232XVR
Compressed Format
H.265
Operating System
Linux
Application
Commercial DVR
Interface Type
BNC/VGA/HDIM
Video Input/Output
32CH BNC Input, 4/8/16/32 Channel DVR
Audio Input/Output
4 Channel
Remote Control
Without Remote Control
Video Fil E Logging Mode
Motion Detection, Time Lapse Video
Audio
4CH Input, 1CH Output
Hard Disk Size
up to 8tb Each
HDD Supported
4X Hdds
BNC Camera Input
16CH 5MP 4MP 3MP 1080P Input
Interface
1CH HDMI, 1CH VGA, 2X USB
Compression
H.265, H.264
HDMI Resolution
1920X 1080
OEM, ODM
Yes, Support Software and Hardware Customised
Customized Logo
MOQ 30PCS
Customized Packaging
MOQ 200PCS
Transport Package
Paper Carton
Specification
480(L)* 382(W)*48(H )
Trademark
SECUMATE, OEM, ODM
Origin
Shenzhen, China
HS Code
8521909090
Production Capacity
20000 Pieces/Year
Product Description
32 Channel H.265 5MP/4MP/3MP/1080P Hybrid DVRMODEL: SE-M5232XVR Display Resolution
Analog:5MP Lite:20fps/ 4MP Lite:30fps/ 3MP:18fps 1080P/720P/960H:30fps
IP:5MP/4MP/3MP/1080P/720P
Record resolution
Analog: 5MP Lite/4MP Lite/3MP/1080P/720P/960H
IP:5MP/4MP/3MP/1080P/720P
Record speed
Analog:5MP Lite:12fps(each ch);
4MP Lite:15fps(each ch);
3MP:10fps(each ch);
1080P:15fps(each ch);
720P PAL:25fps(each ch)/NTSC:30fps(each ch);
IP:PAL:25fps(each ch)/NTSC:30fps(each ch)
Maximum output Brandwidth
96Mbps
Maximum decode performance
1080P:240fps
Recording Mode
Continuous/Manual/Motion detect
HDD interface
4SATA HDD, up to 32TB
Dimension(WxDxH)
378X326X66mm
| Model | SE-M5232XVR | |
| Video Compression | H.265/H.264 | |
| Video System | NTSC/PAL | |
| Operation System | Linux(embedded) | |
| Analog video-input /output | 32CH inputs/VGA and HDMI output | |
| IP Video Input | 4CH | |
| Composite Video Input | up to 36ch (Analog video + IP video) | |
| Audio input /output | 8CH inputs/1CH output(RCA) | |
| Display | resolution | Analog:5MP Lite:20fps/4MP Lite:30fps/3MP:18fps/1080P/720P/960H:30fps |
| IP:5MP/4MP/3MP/1080P/720P | ||
| feature | single/Quad/Nine/Sixteen/S.E.Q. | |
| Record | resolution | Analog: 5MP Lite/4MP Lite/3MP/1080P/720P/960H |
| IP:5MP/4MP/3MP/1080P/720P | ||
| speed | Analog:5MP Lite:12fps(each ch); | |
| 4MP Lite:15fps(each ch); | ||
| 3MP:10fps(each ch); | ||
| 1080P:15fps(each ch); | ||
| 720P PAL:25fps(each ch)/NTSC:30fps(each ch); | ||
| IP:PAL:25fps(each ch)/NTSC:30fps(each ch) | ||
| IP-Recording Bandwidth | 16Mbps~96Mbps(default is 16Mbps, decrease one Analog channel can increase 4Mbps) | |
| (Maximum input Bandwidth) | ||
| Maximum output Brandwidth | 96Mbps | |
| Maximum decode performance | 1080P: 240fps | |
| Recording Mode | Continuous/Manual/Motion detect | |
| Synchronous Playback | 16CH | |
| Network Type | Lan, DHCP, and DDNS | |
| HDD interface | 4SATA HDD, up to 32TB | |
| Multiplex Operation | live display, record, playback, backup and network | |
| USB | 2xUSB(for mouse and backup/upgrade) | |
| Sensor & Alarm I/O | 16 inputs/1 output | |
| PTZ Control | yes (RS485) | |
| Mobile Surveillance | Support Mobile Phones based on iOS and Android operation system | |
| VGA/HDMI | 1024*768,1280*1024,1440*900,1920*1080,2560*1440(2K),3840*2160(4K) | |
| Power Supply | DC12V/2A | |
| Dimension(WxDxH) | 378X326X66mm | |
| Working Temperature | -10°C~+55°C | |
| Working Humidity | 10%~90% | |
