Low Cost CNC EDM Wire Cutting Machines Price Factory

Product Description

Technique parameters

Technical parameter	Unit	DK7732ZAA
Table size (W*D)	mm	440×680
Table travel (X*Y)	mm	320×400
Table size(U*V)	mm	70x70
Max. workpiece weight	kg	600
Max. thickness of workpiece	mm	400
Max. taper angle/workpiece thickness		±6°/80mm
Molybdenum Dia.	mm	φ0.15~φ0.2mm(recommend φ0.18mm)
Max. wire feed rate	m/sec	1~11.4m/sec frequency adjustable
Machining precision	mm	≤0.012
Max. machining speed	mm2/min	160
Surface roughness	μm	one time Ra≤2.5 three times Ra≤1.2 five times Ra≤1.0
Motor type		X,Y,U,V stepper motor
axis controlled		4 axis simultaneous
Min.control pace	mm	0.001
Power supply		380V,3Ph,50Hz
Max. working current	A	12
P ower consumption	Kw	1
Work liquid		JR3A
Water tank	L	90
Filtering mode		Paper filter/Italy pump
Closed protective cover		standard
Machine weight	kg	1800
Machine dimension	mm	1800×1400×1850

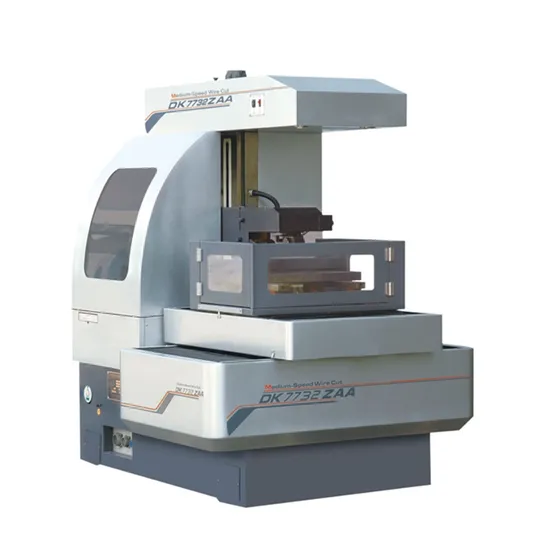

Product show
Factory
Founded in 1958 and developed more than half a century, Jiangsu Dongqing CNC Machine Tool CO. Ltd., has now became a forge ahead modern enterprise for production of CNC machine.

The R&D, production and marketing are the main component of the company. As shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut EDM, Die sinking EDM and Micro hole drilling EDM.

The company has always engaged in improving the quality, function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. "Innovation, development and win-win situation" makes TOPSCNC enjoy high reputation in this line.

TOPSCNC people wish to share success with you in the future! Customer
Certificate
Service
1) Quality : We take care of the product quality in order to provide good service to our customers.
2)Warranty: One year after shipment,consumables are not included.
3)The quotation do not include installation and education training fee.
4) Payment Method: T/T or L/C
5) Delivery time : 18--25 days
6) Packing : Standard export wooden cases
7) Port: Shanghai
