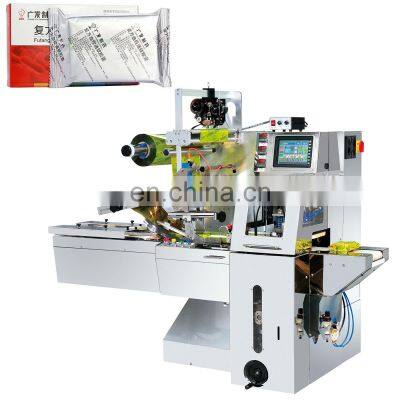

Plastic Bag Medicine Pharmaceutical Automatic Horizontal Pillow Type Flow Packing Machine

Product Description

Product Description
Upgraded Version Automatic Horizontal Pillow Flow Medical Packing Machine Product Description ModelRD-BM-408SRD-BM-508SPacking speed 60-80Bags/min 60-120Bags/min Bag size L80-400W50-140H50-80MML80-400W50-200H70-100MMFilm Width100-400mm100-500mmPacking materialsOPP,CPP,PT,PE,KPT ,CPP,ALU-FOILDimension L:2260 X W:990X H:1400MML:4000 X W:1139X H:1680MMMotor power 0.2+0.4kwTotal power 3.5kw3.5kwTotal weight 700kgs1000kgs Main performance and structure:1. Adopting reciprocating horizontal sealing tool holder design, beautiful appearance and good sealing performance;2. Cantilever frame design body, strong and durable;3. The conveyor adopts full belt design, simple maintenance and easier operation;4. All stainless steel 304 body, in line with food grade requirements;5. Full cover type safety cover, equipped with safety protection switch (warning shutdown), to avoid accidental operation.6. Compact body, no more than 2 meters in length, saving space.7. Servo motor drive, computer control.8. Few mechanical parts, easy maintenance and low noise.It can be equipped with punching device, labeling machine, coding machine, electric eye positioning, easy tearing device and other automatic feeding devices as required. Main features and advantages:1. Sophisticated design: does not occupy space and is easy to move2. Man-machine interface: 7.2-inch color touch screen, easy to operate3. Memory menu: 100 sets of packaging product settings can be stored in memory, switching products quickly without wasting time4. Belt conveyor: easy to use, quick disassembly and assembly, convenient for cleaning and maintenance5. Quick release design: Patented quick release belt design, no tools are needed, and it can be replaced directly with bare hands6. No material standby: In the automatic detection mode, no material will automatically stand by, no empty bag is generated, and no packaging material is wasted7. The reciprocating knife seat design is not easy to wear and does not need adjustment8. Miscutting protection design to avoid product damage and waste caused by miscutting Optional configuration:Adjustable bag forming device, line folding device, automatic film splicer, feeding conveyor, discharging conveyor, adjustable conveyor belt, receiving device, ink roller coding machine, thermal transfer coding machine, labeling machine, punching device
