300kN Servo-Hydraulic Universal Testing Machine

Product Description

Product Description

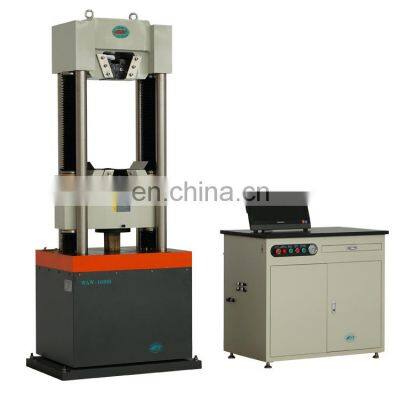

WAW-B Universal Testing MachineUsage OverviewThe series of test machine are loaded hydraulically. Electro-hydraulic servo control technology is used to test the tensile, compressive, bending and shearing of metal and non-metal materials. It displays various closed-loop control methods such as curves, forces, deformations and displacements. It can be switched when testing. The data can be automatically recorded.Product Description1. The oil source control part adopts Siemens motor and high precision digital valve;2.The space adjustment machanism adopts the Kawashima reducer with low noise;3.Using semi-closed hydraulic jaws, high strength;4.Vertical control cabinet, touch industrial computer, convenient and practical, saving space.5.The test adopts the microcomputer automatic control mode, which has the functions of stress rate, strain rate and stress retention and strain retention;6.Host four-column double screw test space structure;7.High-speed Ethernet communication interface communicates with PC;8.Standard database management test data;9.High-strength, high-toughness and beautiful protective net for safaty protection.SpecificationModelWAW-100BWAW-300BWAW-600BWAW-1000BMax. Test Force(KN)1003006001000Tensile Space(mm)700700700700Compression Space(mm)600600600600Column Number6666Compression Platen(mm)Φ148Φ148Φ198Φ225Round SampleTest Range(mm)Φ6~20Φ10~32Φ13~40Φ13~40Plat Sample Test Range(mm)0~200~100~130~13Compression Plant Size(mm)148148198225Piston Stroke(mm)200200200200Diameter of bending roller(mm)50/5050/5050/5050/50Bending fulcrum span(mm)50-30050-30050-30050-300Effective Test Range1%-100%FSMachine GradeLevel 1/ Level 0.5Relative indication error±1%Test Force Resolution1/300000Stress Rate Control Range1MPa/s-50MPa/sStress Rate Control Accuracy1/300000Deformation Resolutionaccording to the number of selected encoder lines, the resolution for 3600 lines is 0.007mmStrain Rate Control Range0.00025/s-0.0025/sStrain Rate Control Accuracy±2%Displacement Resolutionaccording to the number of selected encoder lines, the resolution for 3600 lines is 0.007mmDisplacement Rate Control Range0.1-1000.1-1500.1-1800.1-220Displacement Rate Control Accuracy±2%Stress/Strain/Displacement Control Range1%-100%FSStress/Strain/Displacement Control Rate<10%FS: ±2%;>10%FS: ±1%Oil Control Cabinet（mm）600*740*1560Host Size(mm)620*520*1723810*560*1910880*570*2050940*640*2250Motor Power（kW）2.22.22.22.2Total Weight（kg）1650177021502950Our AdvantagesInstallation and training · If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face. · Without visiting, we will send you user manual and video to teach you to install and operate.After Service · One year guarantee for whole machine. · 24 hours technical support by email or callingAny questions, please contact me without hestitation, welcome your inquiry!Price can be negotiatedour customerCompany Profile ` Cangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment,Universal Testing Machine ,Asphalt Tester,Test Moldsand Soil Road Lab Tester,supply verious type of products ..... We assure high quality to you. · All our products are made in China .Excellent quality with competitive pricePacking & Delivery · Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express companyFAQQ1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material.Besides, we could also purchase products as request. Q2: Where is the loading port?A: Tianjin port or Qingdao Port.Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,thento select for you. Q4: What certificates do you have? A: We have ISO 9001, CE, SGS. Q5: Do you have an OEM service? A: Yes. We can provide OEM services according to your requirements.Q6: What are the payment terms? A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.Related Products
