Compact Euro 5 Engine Mini Excavator for Efficient Digging

Product Description

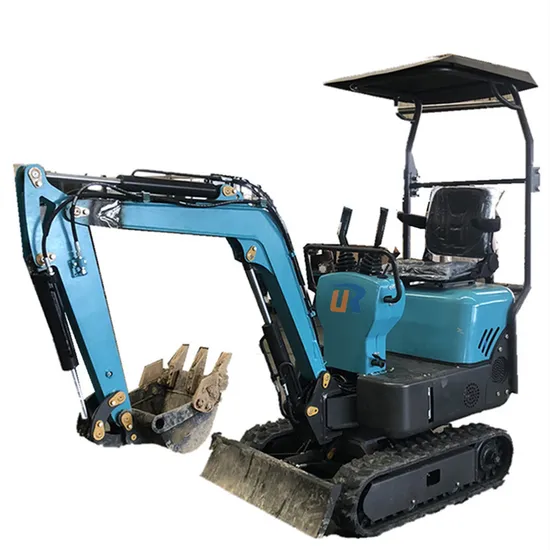

2021 New Construction Equipment Digging Machine Small Digger 1000 Kg 1t Mini Excavator
Product Description
Product Parameters

Product Model	UR10(Euro 5)
Operating weight (kg)	910
Bucket capacity (cbm)	0.025
Engine model	KOOP KD192F-1
Rated power (kw/r/min)	7.0/3000
Swing motor model	RMR-315
Travel motor model	R6K-310
Fuel tank capacity (L)	7
Hydraulic oil tank capacity (L)	17
Travel speed (km/h)	1.9
Swing speed (r/min)	13
Max. climbing degree (%)	58
Arm digging force(KN)	10.2
Bucket digging force (KN)	14.8
Average grounding pressure (Kpa)	28
A-Overall length (mm)	2949
B-Overall width (mm)	930
C-Overall height (to top of boom)(mm)	1095
D-Overall height (to top of cab)(mm)	2219
E-Counterweight ground clearance(mm)	362
F-Min. ground clearance (mm)	134
G-Tail swing radius (mm)	834
H-Track Ground Length (mm)	900
J-Track length (mm)	1233
K-Track gauge (mm)	740
L-Track width (mm)	920
M-Track shoe width (mm)	180
N-Turntable width (mm)	917
O-Max. digging height (mm)	2637
P-Max. dumping height (mm)	1784
Q-Max. digging depth (mm)	1681
R-Max. vertical wall digging depth (mm)	1569
T-Max. digging reach (mm)	3084
U-Max. digging reach at ground level (mm)	3003
V-Min. swing radius (mm)	1390
X-Distance between center of rotation and tail length (mm)	833
Z-Height of counterweight	530
A1-Ground length (in transportion)(mm)	2348
Arm length (mm)	798
Boom length (mm)	1480
