XCMG Hzs90 Project Concrete Batching Plant 90m3 Concrete Batching Plant Price

Product Description

Product Description
XCMG Hzs90 Project Concrete Batching Plant 90m3 Concrete Batching Plant Price
HZS90KE concrete mixing plant is a new kind of concrete mixing equipment researched and developed independently by our company on the basis of absorbing the advantages of foreign and domestic mixing plants of the same type.

HZS90KE cement concrete mixing plant has the features of little area occupied, simple base, deliver fast easy to relocate and low energy consumption.
The components of HZS90KE concrete mixing plant are:
1. Storage, weighing and conveying system of aggregate;
2. Storage, weighing and conveying system of powder;
3. Water supply, weighing and discharging system;
4. Additive storage, supply and weighing system;
5. Mixing and dust-collecting system;
6. The main tower structure;
7. The pneumatic system;
8. The electric control system.
Product Parameters

Items	Unit	HZS90KE
Theoretical productivity	m3/h	90
Dump height	m	4
Model of main mixing machine		JS1500
Mixing power	kW	2×30
Nominal volume of main mixing machine	L	1500
Production cycle	s	60
Aggregate diameter	mm	≤60
Aggregate bin volume	m3	3×10
Powder bin capacity	t	2×100
Batching capacity of batching station	t/Silo	2400
Lifting bucket conveying capacity	t/h	150
Productivity of cement screw conveyor	t/h	90
Standard installed capacity	kW	138
Weighing range & accuracy of sand/stone	kg	(500~4000)±2%
Weighing range & accuracy of cement	kg	(200~800)±1%
Measurement range and accuracy of fly ash	kg	/
Weighing range & accuracy of water	kg	(100~400)±1%
Weighing range & accuracy of additives	kg	(10~30)±1%

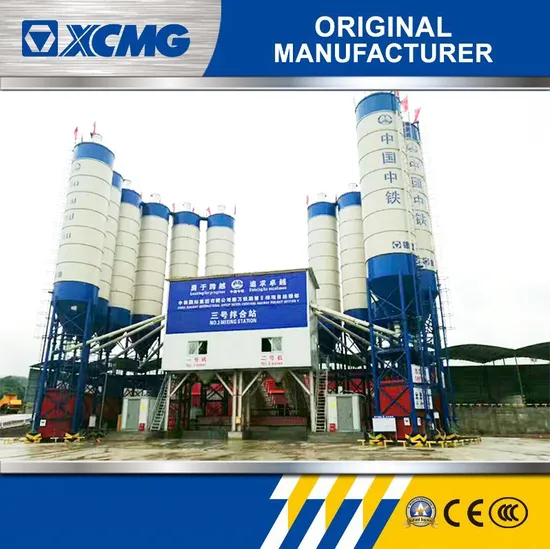

Product Picture
Company Profile
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
