Product Description
Product Description

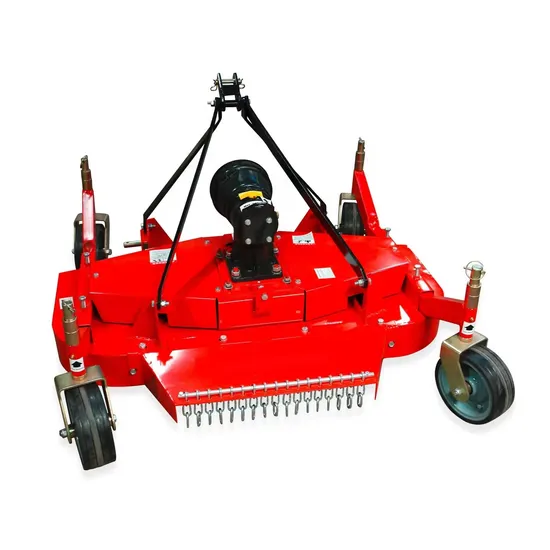

Three Point Finishing Mower
Uses: *Perfect around open grassy areas;
*Slashing a variety of grasses,small trees and light scrub;
*Clearing roadsides;Creating firebreaks.
Features:
*Build to last medium duty slasher with re-enforced frame.
*3 belt-driven blades;
*Large range of cutting heights; Quick coupler PTO driveline shaft included.
*4 independent height adjustable castor wheels allow the mower to contour over uneven surfaces to provide an even finish.
*Rear discharge for normal use or side discharge optionfor use in areas where the cuttings need to be thrown clear.
Product Parameters
Model
| 3.5FM
| 4FM
| 5FM
| 6FM
| 7FM
| 8FM
|
Cutting Width
| 1050mm
| 1200mm
| 1500mm
| 1800mm
| 2100mm
| 2400mm
|
Dimensions
| 1120*1150*600
| 1270*1200*600
| 1570*1300*600
| 1870*1360*600
| 2120*1650*800
| 2420*1750*800
|
Matched Power
| 18-25
| 18-25
| 20-30
| 30-50
| 30-50
| 30-60
|
Blade Number
| 3
| 3
| 3
| 3
| 3
| 3
|
N.W/G.W
| 137/150
| 147/160
| 163/179
| 204/225
| 265/285
| 310/335
|
Packing Size
| 1100*650*450
| 1250*700*450
| 1510*800*450
| 1870*950*450
| 2180*1100*450
| 2450*1300*450
|
Qty/20'GP 20
| 64
| 48
| 42
| 24
| 20
| 10
|
Detailed Photos
Company Profile
Yancheng Newbang Machinery Co., Ltd. is one of the major tractor implement and ATV implement manufacturers in China. Our products range: rotary tiller, backhoe, mower, post hole digger, wood chipper, log splitter, box blade with rippers and so on(30 series and more than 200 models). Newbang's implements are CE and ISO9001 certified and our products are mainly exported to North America, South America, Europe,Asia, etc. We get a good reputation from the worldwide customers.
FAQ
Q1. what's your main products? A: Our products are covered almost all farm machines. Q2: How long is the delivery date? A: In general, we can ship the goods within 15days after receiving your payment. Q3. Do you have after-sales service? A: Yes, all of our products have 12 month quality assurance to make sure that we supply you best quality. Q4. Can you print my brand name on it? A: Of course, you just need to send us the picture of your brand. Q5. what's your payment term? Usually 30% T/T deposit for the order after confirming the contract, and then 70% balance before shipping or against copy of B/L. Q6. Can I mix different models together? A: Yes, you can mix different products or models in a container and we will try our best to use the container place. Q7. what your terms of payment? A:T/T, L/C, and western union
