End Mlling Machine for UPVC and Aluminum Window Making

Product Description

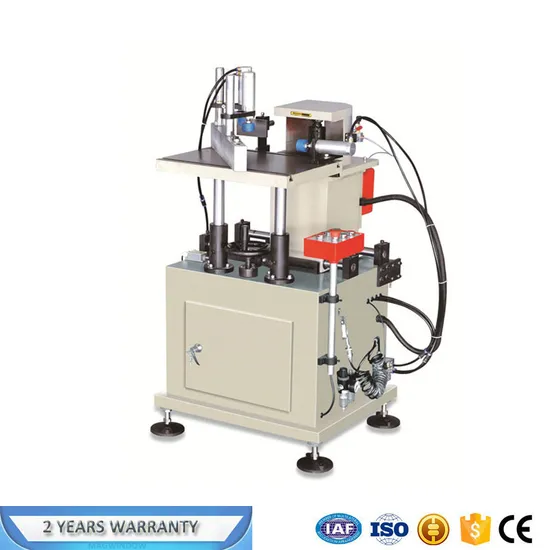

LXD-200 End milling machine
Product Description
1). Special for the mullion, step surface and end groove processing.
2). High-precision main shaft insure accurate and steady processing.
3). Adjustable processing degree within 35°-90° .
4). Convenient tool setting is due to adjustable workable.
5). Vertical and horizontal positioning & clamping system
6). The cutter is mounted on high precision spindle,the motor running accuracy will not affect the tool working accuracy.
7). Cutter feeding adopts linear bearing motion pair so that the working performance is stable.
Product Parameters

Brand name	Mingmei
Model	LXD--200
Power voltage:	380V 50Hz
Main motor power	2.2kw
Saw blade dimension	(Ø200~Ø110)*Ø32
Main motor rotation speed	2840r/min
Planeness of cutting surface	≤0.10mm
Cutting profile surface roughness	Ra12.5μm
Open tenon(H*W)	70*45mm
Location turning angle	35°-90°
Feeding journey of worktable	0-320mm
Overall dimmension(L*W*H)	850*740*1280mm
Weight	300kg
