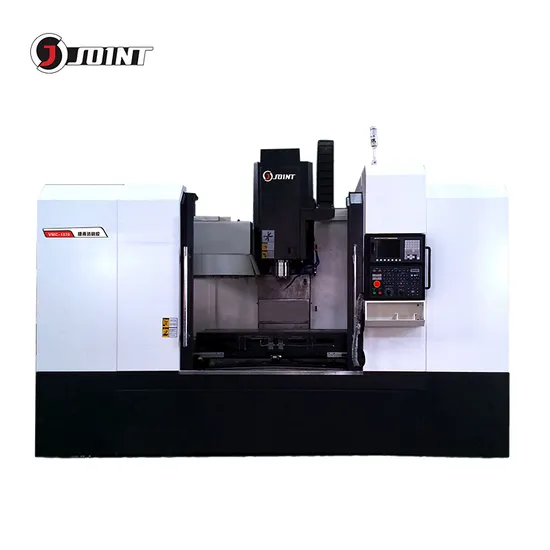

Bt50-155/8000rpm CNC Machine Center Vmc-1370 for Parts Processing

Product Description

Introduction:
The L series machine takes fast and rigid machining as the basic design starting point, which guarantees the mass production, machining accuracy and processing efficiency of the parts.The combination of high efficiency discharge, fast feed and high speed spindle function is modular to meet the customer's different processing needs of personalized choice;The key parts that affect the quality of the whole machine are imported high-quality parts.


Product Characteristics:
1. L series machine X/Y two axis guide rail are both ball linear guide rail pair, sliding guide rail pair.
2. High rigidity construction, satisfying requirement of heavy cutting under the rapid operation of the machine tool.
3. Coupling, bearing, spindle, ball screw, linear guide rail, tool magazine, play knife cylinder these key parts adopts Germany, Japan, Taiwan brand precision grade accessories to ensure its accuracy and quality.
4. Modularization of various configurations to meet customers' different personal processing requirements: coolant through spindle (CTA); spring ring spindle; 8000rpm belt type spindle, 10000-15000rpm direct connection spindle.
5. This series machining center is designed specially for part processing, accelerating the feed speed of the machine too, while taking into account the high rigid cutting requirements of the machine.
6. This series machine model is complete, from 650L-1890L, suitable for medium and small and medium-sized metal part processing requirements.
Product Details:
Specification:

Model				VMC-1370L
Travel	X axis travel		mm	1300
	Y axis travel		mm	700
	Z axis travel		mm	700
	Distance between spindle and table		mm	140-840
	Distance between spindle and column		mm	785
Table	Size		mm	1500*700mm
	Load		kg	1000kg
	T slot size		mm	5-18*135
Spindle	Taper			BT50-155
	Rotation speed		r/min	8000
Three axis	Cutting feed		m/min	10
	Rapid feed		m/min	20(Max24)/20(Max24)/12
Accuracy	Positioning accuracy		mm	0.008
Other	Dimension		mm	3800*3300*3300
	Min Setting Moving Unit		mm	0.001
	Weight		kg	9200

Standard accessories: 1. Mitsubishi/ Fanuc controller system with AICC2 Function 2. Fully enclosed cover 3. Pneumatic system 4. Anto lubrication system 5. Work piece coolant system 6. Heat exchange 7. Air gun 8. Water gun 9. Spindle oil coolant 10 Rear flishing 11. Hand wheel 12. RS232 Interface 13. Alarming light 14. Working light 15. Guide way cover 16. Technical documents 17. Operation manual 18. Chain type chip conveyor

Optional accessories: 1. 4 axis Rotary table 2. Coolant through spindle (CTS) 3. 24T/BT40 tool magazine 4. 5 axis

Package:

Company Information:
Shenzhen Joint Technology CO.,LTD., was established in 1995. One of our headquarters is located in PingHu town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development, production, sale, and service of mold processing machine tools and specialized machine tool equipments for machine work of excellent quality for more than two decades.
There are eight series of products-high speed turret milling machine, precision surface grinding machine, EDM machine tool, CNC milling machine, NC milling machine, Gantry type machine center, CNC engraving machine, and CNC lathe machine
Our own brand "JOINT " Has been the top quality machine's signal in domestic sales, JOINT also has been recognized as " GUANGDONG Famous Brand ", and milling machine was recognized as " TOP 10 Famous Brand of Milling machine " in China. Our product had been exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation there, Welcome your visit !
