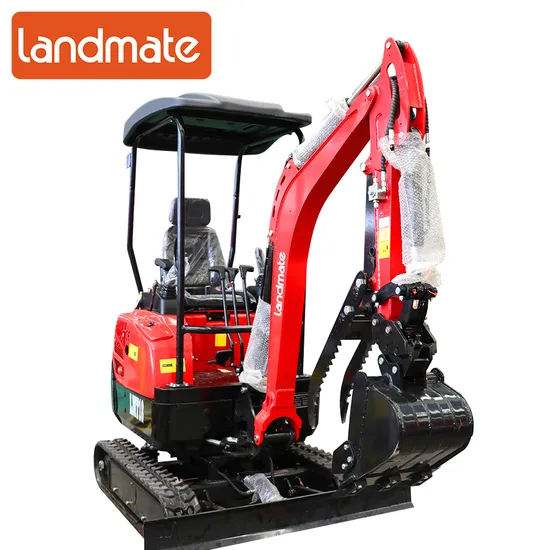

1.8ton CE EPA Multifunction Farm Household 360 Degree Crawler Mini Small Excavator

Product Description

A compact or mini excavator is a tracked or wheeled vehicle with an approximate operating weight from 0.8 to 2.0 tonnes. It generally includes a standard backfill blade and features independent boom swing.
The mini excavator has capabilities similar to an excavator, with the added benefit of being able to work in small spaces. It goes by many names including the mini excavator, small excavator, mini digger, mini hoe and compact excavator. No matter what you call this machine, the small compact excavator is small enough to get any type of precise digging done.
Landmate designs 6 kinds of mini excavators, including 0.8 ton, 1 ton, 1.2 tons, 1.5 tons, 1.8 tons and 2.0 tons. Used for installing pools & hot tubs, repairing sewer lines, tree harvesting, light demo, material handling, stump removal, construction projects or landscaping.
Optional attachments:
• Hydraulic thumb bucket
• Mud / Cleaning bucket
• Skeleton / Sieve bucket
• Tilting bucket
• Ripper
• Rake
• Rotary drill
• Hammer
• Quick coupler / hitch
• Wood grabber
• Custom logos, shape, size and other features available upon request.
LME18 Crawler Excavator Specifications

Machine size (mm)
Overall dimension (L*W*H)	3,865*1,050*2,270
Axle base ( Track length on ground)	1,230
Track gauge	820
Min. ground clearance	210
Swing radius at tail	1,125
Track system
Maximum travel speed	3.5 km/h
Width of track shoe ( Rubber & steel track)	230 mm
Number of track shoe per side (Steel track only)	38 pcs
Number of upper roller / bottom roller (per side)	0/4
Working Range (mm)
Max. digging height	3,365
Max. dumping height	2,385
Max. digging depth	2,050
Max. vertical digging depth	1,725
Max. digging radius	3,860
Max. swing radius	1,720
Max. Lifting height of blade	230
Max. cutting depth of blade	275
Boom swing angle(left)o	75
Boom swing angle(right)o	45
Performance parameter
Working weight	1,800kg
Bucket capacity m3	0.06
Max. bucket digging force	14KN
Max. arm digging force	10KN
Swing speed	10-12 RMP
Gradeability	35o
Hydraulic system pressure	18Mpa
Engine
Emission standard	Euro 5 / EPA
Engine brand / power	KUBOTA D722 /10.2KW
Main valve	BEIFANG

FAQ
1. Are you factory or trading company?
We are the excavator buckets of manufacturer with over 12 years experience.
2. What is your best price?
We are sure that at the same price, we can provide the best quality. And at the same quality, we can provide our best offer.
3. Is one sample acceptable?
Of course yes, one mini excavator sample is welcome.
4. What is your delivery time?
About 25-45 days.
5. What's your company advantages?
High cost performance & quick response + fast delivery + excellent one-stop from designing to promotion.
6. What's your mainly exporting market?
We export to American, Australia, Chile, Peru, South Africa, Russia and so on.
7. Can you manufacture excavator buckets with our brand?
Surely, that is welcome to customize service.
8. How to choose the right excavator?
Please advise us your usage.
