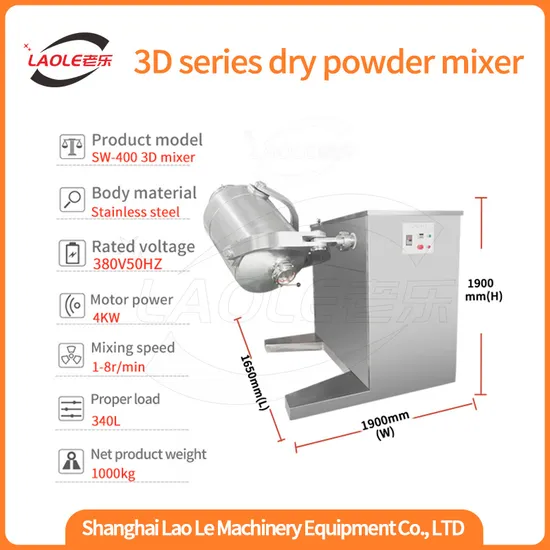

Sw-400 3D Industrial Grade Dry Powder Mixer 3D High Efficiency Mixer

Product Description

Product Description
Product Description
Product Features:
Equipment scheme and working principle of 3D motion mixer
Under the drive of the main shaft, the cylinder body of the charging material is driven by the repeated translation, rotation and tumbling compound movement, which makes the material do circular, radial and axial three-way compound movement along the cylinder body, so as to realize the mutual flow, diffusion, accumulation and doping of a variety of materials, to achieve the effect of uniform mixing; During the operation of the machine, due to the multi-direction mixing, the flow and diffusion effect is accelerated, and the gravity segregation and accumulation phenomenon of the material produced by the centrifugal force in general mixing machine is solved. Technique Parameter:
Technique parameter of CH trough mixer:

Model	SYH 10	SYH 20	SYH 50	SYH 100
Barrel volume	10L	20L	50L	100L
Maximum charge volume	9L	17L	42.5L	85L
Maximum charge weight	4kg/time	17kg/time	42.5kg/time	85kg/time
Spindle speed	12r/min	12r/min	0-10.6r/min	0-10.6r/min
Motor power	0.37kw(220v,50hz)	0.55kw(220v,50hz)	0.75kw(220v,50hz)	1.5kw
Dimensiom(L*W*H)	860*800*860mm	800*800*650mm	890*1150*1250mm	1350*1400*140mm

Model	SYH 200	SYH 400	SYH 600	SYH 1000
Barrel volume	200L	400L	600L	1000L
Maximum charge volume	180L	340L	540L	800-850L
Maximum charge weight	180kg/time	204kg/time	540kg/time	480-510kg/batch
Spindle speed	0-11r/min	1-8r/min	0-8.5r/min	0-6r/min
Motor power	2.2kw	4kw	5.5kw(220v,50hz)	11KW
Dimensiom(L*W*H)	1450*1500*1400mm	1650*1900*1900mm	1750*2100*2100mm	2180×2500×2200mm
Weight	568kg	1000kg	1200kg	1500 kg

Related products
Recommended Products

Detailed Photos
Our Advantages

Our factory
Our Factory
Shanghai Laole Machinery Equipment Co., Ltd. Main sales:
1. Customized die for single punch tablet press, rotary tablet press, flower basket tablet press and tablet press.
2. Flat packaging machine (capsules, tablets, pills, liquids, pastes, etc.) We can produce mold effect drawings according to customer's requirements.
3. Small bag flexible packaging machine (granule packaging machine, powder packaging machine, liquid paste packaging machine) Capsule filling machine (semi-automatic capsule filling machine, automatic capsule filling machine, capsule powder removing machine)
4. A packaging production line for packaging machinery and equipment (counting machine, sealing machine, bottle unscrambler, capping machine, dryer, labeling machine)
Tablet press supporting equipment:
Mixer (dry powder V-type mixer, trough-type wet material mixer, three-dimensional mixer) Granulator (wet process rocking granulator, dry granulator, rotary granulator) Sugar Coating Machine, Coating Machine, Pill Making Machine, Pulverizer, Tablet Counting Machine, Electronic Counting Machine Decoction machine, dryer, oven, drying equipment, vacuum feeder, powder removal sieve equipment Tablet press with vacuum cleaner, slicer, etc. We can produce mold renderings and drawings according to customer requirements, Sincerely look forward to cooperating with you, we will serve you wholeheartedly.
