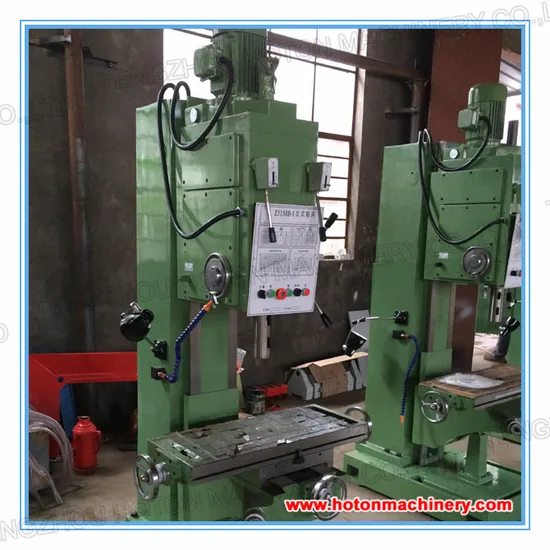

Square Column Vertical Drilling Machine (Z5140A Z5140B)
| US$1,200.00-1,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5140A Z5140B
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Drill Capacity
40mm
spindle travel
250mm
speed step
12
speed
1400rpm
weight
1250kgs
Transport Package
Plywood Case
Specification
1250kgs
Trademark
HOTON
Origin
Shandong, China
HS Code
8459290000
Production Capacity
20 PCS/Month
Product Description
SQUARE COLUMN VERTICAL DRILLING MACHINE
Square-column vertical drilling machine is a universal general-purpose machine.
Its used for counter-sinking, spot-facing drilling, tapping, boring, reaming, etc.
The machine has catch the function of tap-automatically reversing device which
is suitable for tapping of blind and determined holes.
The machine has high efficiency, high accuracy, low noise,
wide range of variable speed, centralized controls good looking appearance,easy maintenance and operation.
SPECIFICATION
| SPECIFICATION | UNITS | Z5140A | Z5140B |
| Max. Drilling diameter | mm | 40 | 40 |
| Spindle taper | morse | 4 | 4 |
| Spindle travel | mm | 250 | 250 |
| Spindle box travel | mm | 200 | 200 |
| Number of spindle speeds | step | 12 | 12 |
| Range of spindle speeds | r/min | 31.5-1400 | 31.5-1400 |
| Number of spindle feeds | step | 9 | 9 |
| Range of spindle feeds | mm/r | 0.056-1.80 | 0.056-1.80 |
| Table size | mm | 560×480 | 800×320 |
| Longitudinal/cross travel | mm | / | 450/300 |
| Vertical travel | mm | 300 | 300 |
| Max.distance between spindle and table surface | mm | 750 | 750 |
| Motor power | kw | 3 | 3 |
| Overall dimension | mm | 1090×905×2465 | 1300×1200×2465 |
| Machine weight | kg | 1250 | 1350 |
| Contact Us: |
Andy Wang TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 13506328892 hotonmachinery.en.made-in-china.com |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
