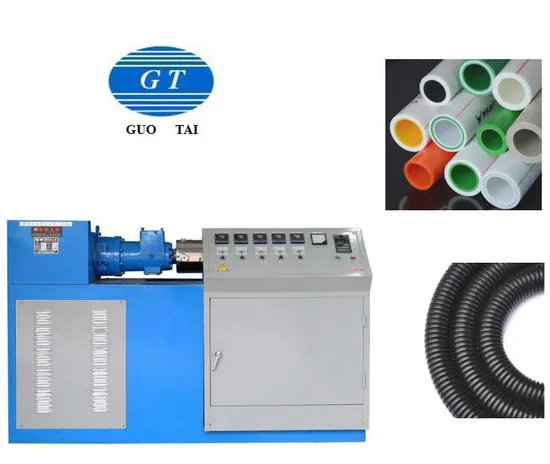

PE PVC PPR Plastic Pipe Manufacturing Extruder Machine
| US$9,500.00 | 1 set (MOQ) |
Basic Info.
Model NO.
SJ
Pipe Material
PVC
Condition
New
Customized
Customized
Theory
Inverter
Application
Industry
Type
Pipe Production Line
Certification
SGS
The Raw Materials
PE HDPE LDPE PVC PC etc.
Pipe Diameter
10mm-800mm
Color
Customer Demands
Gear Box
Famous Brand
Frequency Inverter
Zoncn
Motor
China Famous Brand
MOQ
1set
Transport Package
Wood Bottom Case
Specification
Germany Standard DIN 8061- 8062
Trademark
GT
Origin
China
HS Code
8477209000
Production Capacity
100sets/Months
Product Description
| Yuyao Guotai rubber and plastic Machinery Co. LTD Main products: plastic pipe extruder production line, plastic profile extrusion production line, wire/cable extrusion production line, plastic granulation unit and so on. Support to map to sample custom mold Welcome telephone consultation |
| ZLYJ 173 Hard face gear box Low noise, large bearing capacity, stable performance and so on. | |
| High quality nitride/alloy steel screw barrel Special alloy steel material, durable, precision machining and special heat treatment process. |
| model | uPVC63 | uPVC160 | |
| pipe range(mm) | 20-110 | 110-160 | |
| capacity(kg/h) | 100 | 150-200 | |
| center height(mm) | 1000 | 1000 | |
| single screw extruder | extruder model | SJ65 | SJ90 |
| screw diameter(mm) | 65 | 90 | |
| L/D | 25:1 | 25:1 | |
| Screw rotation speed(rmp) | 80 | 100 | |
| motor power(kw) | 22 | 37 | |
| heating power(kw) | 16 | 36 | |
| coolin blower power(kw) | 0.75 | 0.75 | |
| vacuum calibration tank | length of calibration case(mm) | 6000 | 6000*2 |
| vacuum degree(mpa) | 0-0.1 | 0-0.1 | |
| absorbing gas speed(m3/h) | 60 | 60*2 | |
| water pump power(kw) | 4 | 4 | |
| longitudinal moving motor power(kw) | 1.1 | 1.1 | |
| Spray cooling tank | length of spraying tank(mm) | 4000-6000 | 6000-8000 |
| water pump power(kw) | 4 | 5.5*2 | |
| haul off machine | driving power(kw) | 2.2 | 4 |
| max pull(N) | 7000 | 12000 | |
| effctive haul off length(mm) | 1500 | 2000 | |
| Pneumatic blade type cutter | blade diameter(mm) | 350 | 500 |
| driving power(kw) | 1.1 | 1.1 | |
| working air pressure(mpa) | 0.7-0.7 | 0.7-0.7 | |
| stacker | length(mm) | 6000 | 6000 |
