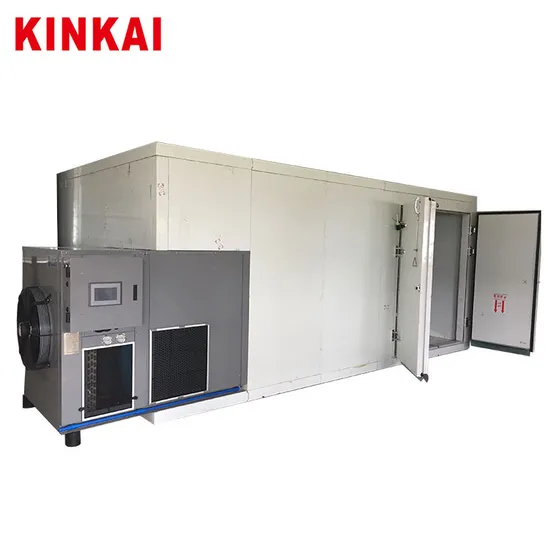

Kinkai Fruit Dehydration Equipment Vegetable Drying Machine

Product Description

The advantages of our dryer
1. Efficient and environmentally friendly: Our dryer mainly uses the heat energy in the air to dry the material, consumes less electricity, can save about 75% of the operating cost than the traditional dryer, and has no pollution during the drying process. Emissions.
2. Safe and reliable operation and long service life: Our dryer has mature technology, stable performance, intelligent control and no manual operation.
3.Adopt duct-type drying method, it with shorter drying time and well-distributed hot air, drying time shoter 30% than models.
How does our fruit dryer work?
1. Take heat from the external environment (air) and pass it to the drying oven through the compressor.
2. The heat is circulated and flowed through the working of the compressor in the drying box, and the heat of the recovered material is used to realize the secondary recycling of heat.
3. After the process of hot-air dewatering or condensed water removal the moisture in materials vents, and finally realizes the continuous dry of materials.
4.During drying, the material does not craze, does not distortions, non-discolouring, never degenerate, non-oxidize, drying completely, with good rehydration, keep nutrient content.

Product Parameters

Single dryer + Drying chamber
Model	Unit	JK03RD	JK06RD	JK12RD
Power input	KW	5.5	9.5	19.4
Power supply	V/PH/ HZ	380V3PH,50/60HZ 220V/1PH,50/60HZ	380V/3PH,50/60HZ
Rated current	A	11A(380V),25A(220V)	19.0	39.0
Heating capacity	KW	10.5	21.0	42.0
Cooling capacity	KW	7.8	18.0	32.0
Dehumidify	L/H	12	25	50
Max temperature	ºC	<75	<75	<75
Working condition	ºC	0-43	0-43	0-43
Electric shock protection grade		I	I	I
Max exhause pressure	Mpa	3.0	3.0	3.0
Noise	dB(A)	75	75	75
Power consumption/h	KWH	4.8	8.5	15.0
Electric heater	KW	3.0	6.0	12.0
Blowing type	/	HORIZONTAL BLOWING 360°
Dimension of dryer	MM	1675x860x1280	1760x1060x1280	2120x1360x1590
Weight	KG	180	285	480

Recommend Dryer + Drying Chamber Sizes
Description	Product Capacity	Drying Chamber Sizes
One unit JK03RD dryer+drying chamber	300KG/batch	3160*2070*2200mm
One unit JK06RD dryer+drying chamber	600KG/batch	5700*2170*2200mm
One unit JK12RD dryer+drying chamber	1200KG/batch	5810*3230*2200mm
Two unit JK03RD dryer+drying chamber	800KG/batch	7510*2070*2200mm
Two unit JK06RD dryer+drying chamber	1500KG/batch	10530*2170*2200mm
Two unit JK12RD dryer+drying chamber	3000KG/batch	10750*3230*2200mm

Detailed Images
Packaging & Shipping
Hot air heat pump dryer will be packed in wooden box and use iron hoops reinforce. The machine will be loading in standard container, such as 20GP, 40GP,40HQ, open top container and use iron hoops reinforce.
Our Services
1) OEM service
2) Produce heat pump according to customer's special demands.
3) Supply spare parts according to order quantity.
4)Technical support for your installation, operation and maintenance.
5) One year's warranty, and you can pay for extended warranty.
6)Spare parts and technical support at most economic prices after the warranty.
After installation,during the guarantee period,our company will be responsible for problems caused by quality of production or raw material except the damageable spare parts of heat pump caused by incorrect man-made operation.
If you want to know more details of our dehydrator, you can contact with me as the below information. We are looking forward to hear you soon!
