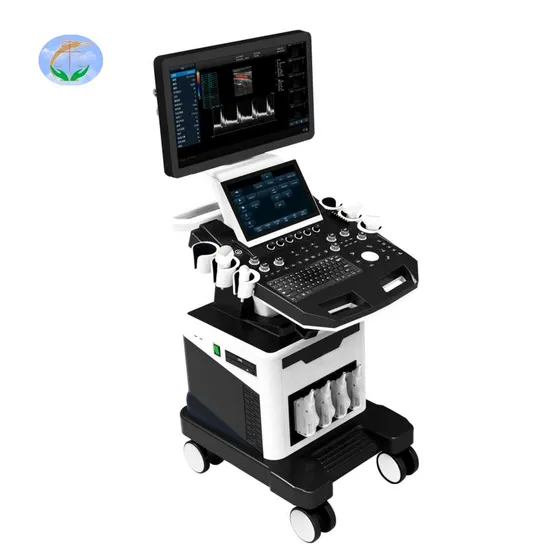

High Performance Trolley Ultrasond Machine 5D Color Doppler Ultrasound Scanner

Product Description

Product Description
5D ultrasound that you can afford It equipped with a high-resolution medical display, adopts multi-beam parallel technology and sub-array element transducers, and its superior image clarity perfectly meets the needs of women's health care. At the same time, it relies on the realistic RealSkin 5D ultrasound technology and abundant measurement packages to better protect women's health. 4D/5D Color Doppler Ultrasonic Diagnostic Apparatus YJ-U50Pro 1. Product Name: Color Ultrasonic Diagnostic Apparatus 2. Purpose and applications:
To meet the basic hospitals in the abdomen, obstetrics, gynecology, heart, urinary system, small organs, superficial, blood vessels, pediatrics, neonatal, muscle, physical examination and other inspections anddiagnosis. 3. Main specifications and system overview: 3.1 Operating system: Windows 8
3.2 Pulse Wave Doppler
3.3 Directional Energy Doppler
3.4 Real-time triple synchronization
3.5 Spatial Composite Imaging
3.6 Tissue Harmonic Imaging
3.7 2B/4B Imaging
3.8 Support system languages: Chinese, English, French, Russian, Spanish. 3.9 Standard monitor size: 21.5 inch, high-definition medical grade LCD display, and 13.3 inch touchscreen
3.10 Integrated clipboard: display the saved images at the bottom of the screen, which can be directlytransferred or deleted
3.11 Support real-time 3D imaging function (3D/4D/5D)

1	Monitor
2	Touch screen controller
3	Probe
4	Control keyboard
5	Probe support
6	Trolley base
7	Probe interface

What is HD Live(5D)Technology? Ultrasounds with 3D/4D imaging have been around for years, but the HD live(5D) ultrasound technology uses a unique and moveable light source inside the probe that not only provides both 3D and 4D imaging, but "lights up" the baby, making it possible for soon-to-be-parents to see the facial expressions of their child, and even watch their baby yawn, wink and smile. An HD live(5D) ultrasound provides impeccable views of your baby by providing better depth perception. We can change the position of the light and more clearly see the baby's lips, nose and eye lids. Real skin rendering Real skin rendering adopts 4D ultrasonic images plus spatial dimension parameters to obtain more three-dimensional and realistic 4D images, which surpasses most of the limitations of traditional gray-scale ultrasound. Smooth Workflow The whole is elegant and beautiful, the diagnostic measurement package is rich and comprehensive, and the operation process is simple and fast. Imaging Features The whole is elegant and beautiful, the diagnostic measurement package is rich and comprehensive, and the operation process is simple and fast. Expandable Four fully activated probe interfaces. USB image storage export. Can connect external monitor and printer. Efficient Built-in file information management system can record the number, name, check number, check date, and so on, and can search through the number, check number, name and so on. The diagnostic report can be edited, ultrasound diagnostic image can be embedded in the report, and directly printed. Simple Integral small keyboard, easy to operate. Probe storage tank free combination. Superior Main screen is 21.5-inch and auxiliary screen is 13.3-inch medical ultrasonic touch screen, to meet the needs of doctors from different angles. The full use of touch screen can reduce inaccurate operation caused by button contact and pressing, and minimize user fatigue. Sub-array technology The dedicated high-density probe adopts a brand-new array design technology and a unique sub-array element technology. The second cutting of independent wafers can completely control the entire process of wafer vibration, thereby reducing side lobe artifacts and enhancing the fine resolution of tissues. The boundary between adjacent strong echo reflectors is sharper. It fully demonstrates the high-resolution images brought by the high-density probe, perfectly presents the image details, and increases the accuracy of clinical diagnosis Trapezoid imaging
Spatial composite imaging
Spectrum pulse Doppler
Tissue harmonic imaging
DPDI
Real-time triple
Technical specifications

1. Product Name: Color Ultrasonic Diagnostic Apparatus

1.1 Structure type: Dual-screen trolley type Module case with lifting structure and rotatable operation keyboard.

Multiple frequency of different probes:

Convex probe: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/H4.0MHz/H5.0MHz, (depth 30-255mm) Linear probe: 6.0MHz/7.5MHz/8.5MHz/10.0MHz/H10.0MHz, (depth 20-128mm) Trans-vaginal probe: 4.5MHz/6.0MHz/7.0MHz/9.0MHz/H8.0MHz, (depth 30-156mm) Phased array probe: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/H3.0MHz/H4.0MHz, (depth 100-244mm) 4D Volume probe: 2.0MHz/3.0MHz/4.5MHz/6.0MHz/H5.0MHz, (depth 30-237mm) Micro convex probe (R15): 4.0MHz/6.0MHz/7.0MHz/8.0MHz/H8.0Mhz, (depth 30-111mm)

Picture and text management system: Picture saving format: BMP/DICOM/JPEG as default

Built-in 128GB solid-state hard drive in the main unit to start fast and stable Cine loop: 600 frames Built-in file information management system: with record number, name, inspection number, inspection date, etc., and can search and manage by number, inspection number, name, etc. Report types: 17 kinds One-key quick report graphic management

Interfaces: 4*USB ports, 1*Video, 1*S-Video, 1*DVI, 1*HDMI, 1*RJ-45

Configurations: Color Ultrasonic Diagnostic Apparatus host *1 set Optional accessories: Thermal printer, puncture guide frame, gel warmer etc. Standard warranty period: 2 years, including machine and probes Life-long maintenance after the expiration of the warranty period, and free upgrade and maintenance of the workstation software involved
