165 Cutting Edge Hand Push Harvester Pepper Harvester

Product Description

Product Description

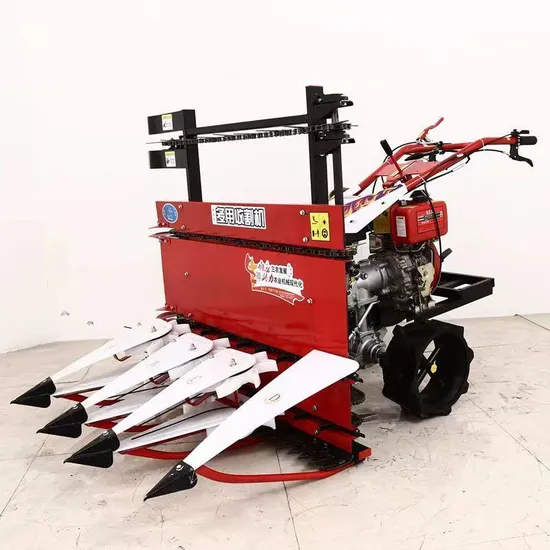

The cutting machine is composed of two parts: a matching host machine and a cutting machine. It is mainly used for harvesting wheat, rice and other platycodon crops, suitable for platform topography, plant height of 0.5~1.5 meters, stem diameter (less than 45°) wind less than 4, non-rainy day operation. The power output shaft of the cutter is transmitted to the cutting table gearbox through the transmission shaft, and is transmitted to the eccentric crank sliding frame mechanism through the transmission claw clutch and a pair of bevel gears to drive the cutter, and is transmitted to the drive shaft of the conveyor chain through the sprocket chain, thereby driving the movement of the upper and lower conveyor chain. The straw belt is driven by the star wheel of the straw lifter. The motion of the star wheel of the grass lifter is driven by the tooth extraction of the conveyor chain.

Detailed Photos

Product Parameters

A variety of specifications cutting machine

Total loss 0.1Cut width 1 m 1.2 m 1.5 m

Start mode Power start

It weighs about 290 kilograms

1 The main machine is equipped with a new type of micro-cultivator, light and convenient, especially suitable for mountainous use, the whole machine is 180 kg, easier to operate than the driven walking tractor.
2. The cutting table uses a high temperature wear-resistant chain drive, not the traditional belt drive.
3. The cutting table bracket is made of round steel, not ordinary steel pipe, more durable anticorrosion and rust prevention.
4. Our company has a special series of spray water painting equipment and professionals, there will be no other manufacturers paint rust phenomenon.
5. Factory giveaway wearing parts, so that you have no worries.
Light weight, small size, large power, reliable performance, easy to operate and other characteristics, favored by customers, products sell well in China and Southeast Asia, Africa, South America and other regions.
