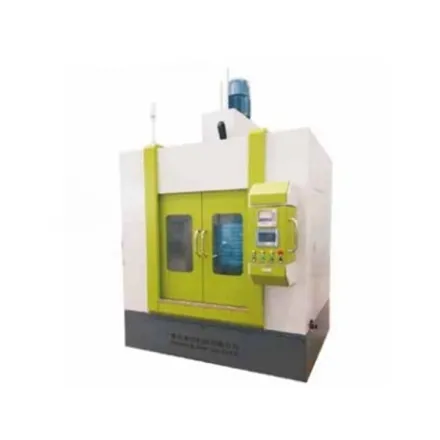

High Preicion CNC Valve Honing Machine with Good Quality

Product Description

CNC vertical high-precision vertical honing has precise control and high processing speed, which can achieve excellent honing results in a short time. With our company's various honing heads, you can achieve more accurate honing results. Widely used in hydraulic parts, motors and high precision parts.
1. The machine adopts solid castings, which gives the machine a thick body and ensures a more stable operating environment for the machine. The use of high-precision parts and precision grinding guarantees the precision of the machine.
2. The spindle box is driven by servo motor, which provides sufficient power to the machine. At the same time, long-term testing carried out by our company's engineers maximizes the processing control precision of the machine tool. Achieve high torque at high speed, increase cutting force, and easily set the correct spindle speed for parts with different hole diameters. Different power spindle motors will be selected according to different cutting force requirements.
3. Honing head feed expansion system:
Feed with servo motor: The honing head uses a motor to precisely control the feed. During the working process, it feeds automatically and continuously, thereby ensuring continuous and efficient honing processing. Our company offers various honing heads to meet different needs. clients.
4. Cooling system
Each honing machine is equipped with a filter system and uses special honing oil for smoother processing, efficient cleaning and maximum grinding efficiency. In combination with various filtration systems, honing oil can be effectively filtered. To process different materials, we offer different filtration systems, for example, for magnetic metals, we will use a magnetic separator system, and for non-magnetic materials, we can choose a paper filtration system or a pressurized paper filter.
5. Honing tools:
Taking into account the features of cylindrical honing, our company manufactures fixtures, grinding heads and other tools to order. These honing tools can only be adjusted to suit the conditions of the workpiece.
6. Control system:
Our company usually uses touch screen + PLC control, which can be customized if special requirements are required. The control system is designed by professional engineers using intelligent honing software. During machine operation, the honing tool, desired speed, reciprocating motion, feeding, cooling, etc. can be easily adjusted, and the machining process can be monitored online, so that operators can monitor and obtain high-quality finishing with our honing machines. .
For ease of operation, the operation is installed on a hard screen. Our online tracking system is very convenient and makes things easy. The system monitors the operating condition of the machine and the accuracy of parts so that changes can be made in a timely manner to avoid waste and equipment damage. Machine Parameters

No.	Items	Description
1	Model	FJYHM4250-2-2
2	Honing diameter range	φ6mm-50mm
3	Stroke length	350mm
4	Stroke speed	25m/min adjustable
5	Stroke control model	Servo motor
6	Honing extension way	Quantitive/ Constant pressure
7	Spindle motor	Frequency Inverter/Servo
8	Mini feeding unit	0.1um
9	Motors of spindles	3.7Kw/5.5Kw
10	Скорость вращения шпинделя	80-1500r/min
11	Количество шпинделей	2
12	номер станции заготовки	2
13	Размеры машины	1900×1700×3000 mm
14	Вес машины	4.0T

FAQ
Q 1. What products is this honing machine mainly used for?
Mainly used for workpieces with hole diameter 6-50mm and working depth up to 350mm, hydraulic parts, bushings, gears, connecting rods, etc.
Q 2. What materials can this honing machine process?
This honing machine uses our company's honing tools to process various workpieces. For various workpiece materials, we have diamond, cubic boron nitride, aluminum oxide, silicon carbide and other materials for grinding various workpiece materials.
Q 3. What training is required to use this machine?
Provide our company with professional workpiece drawings, advise the necessary processing requirements and performance requirements, and our company will provide a honing plan. Our company offers honing tools, special workpiece fixtures, honing oil, special filtration systems, pneumatic measuring instruments or special testing tools and accessories, etc.
Q 4. What about the shipping method and payment method?
Our company has a long-term warehouse of equipment and tools. If the tools needed for your honing project are in stock, we can arrange delivery within 15 days. If the item is out of stock, the total delivery time is 1 month.
Our company is a professional trading company providing international trade services. We usually focus on bank transfers, but also accept letters of credit, personal transfers and other channels.
Q5. What kind of after-sales service can you get when you buy our machines?
Our company provides 1 year warranty and free online technical support such as chat groups, email, etc. You can report problems through pictures and videos, and we will provide you with solutions, video explanations or video conference to answer your question. questions. Our company annually participates in the Moscow Machine Tool Exhibition in May. You can communicate at the exhibition, or our company can organize on-site service.

Q 6. If user need honing support, what could we supply ?
We could supply free online support, and before order, if you give us invitation, we could fly to your factory to make the video calling , make face to face meeting to explain honing for your project. After order, we could check your problems with videos, pictures.
