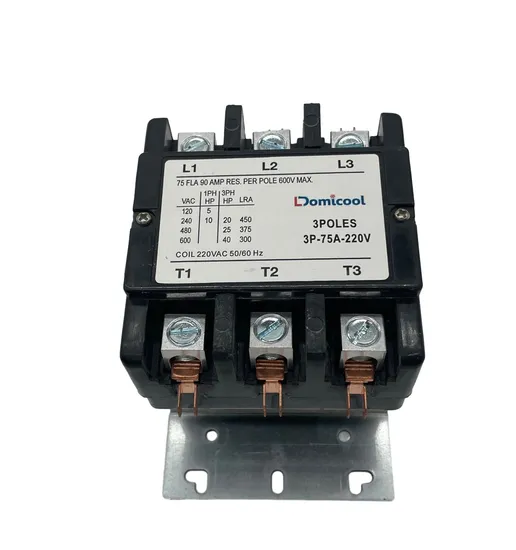

HVAC Parts High Quality 1p 2p 3p 4phase 220V 30A 40A 50A Coil Volt 24V 120V 240VAC Electric Magnetic Definite Purpose Copper Silver AC Contactor

Product Description

Product Description
Products Description

Insulating material	Contact block and carrier are highly electrical-grade thermosetting resin
Temperature range	-40°F to 150°F
Mechanical life	Conforms to UL and ARI specifications
Outline drawings	As follow
Weight(approximate)	9.5oz
Coils frenquency	50/60hz
Coils insulation	Class B(130'C)
Termination	Pressure connector and double 1/4 Q.C.
Operate	85% of nominal coil voltage, 110% maximum sate operate
Duty cycle	Continuous

Part NO.	Poles	Coil Volt	Full Load Amps	Part NO.	Poles	Coil Volt	Full Load Amps
CON-1/24/30	1	24VAC	30	CON-3/120/50	3	120VAC	50
CON-1/120/30	1	120VAC	30	CON-3/240/50	3	240VAC	50
CON-1/240/30	1	240VAC	30	CON-3/480/50	3	480VAC	50
CON-1/24/40	1	24VAC	40	CON-3/24/60	3	24VAC	60
CON-1/120/40	1	120VAC	40	CON-3/120/60	3	120VAC	60
CON-1/240/40	1	240VAC	40	CON-3/240/60	3	240VAC	60
CON-2/24/30	2	24VAC	30	CON-3/480/60	3	480VAC	60
CON-2/120/30	2	120VAC	30	CON-3/24/75	3	24VAC	75
CON-2/240/30	2	208/240VAC	30	CON-3/120/75	3	120VAC	75
CON-2/24/40	2	24VAC	40	CON-3/240/75	3	240VAC	75
CON-2/120/40	2	120VAC	40	CON-3/480/75	3	480VAC	75
CON-2/240/40	2	208/240VAC	40	CON-3/24/90	3	24VAC	90
CON-3/24/30	3	24VAC	30	CON-3/120/90	3	120VAC	90
CON-3/120/30	3	120VAC	30	CON-3/240/90	3	240VAC	90
CON-3/240/30	3	240VAC	30	CON-3/480/90	3	480VAC	90
CON-3/24/40	3	24VAC	40	CON-3/24/125	3	24VAC	120
CON-3/120/40	3	120VAC	40	CON-3/120/125	3	120VAC	120
CON-3/240/40	3	240VAC	40	CON-3/240/125	3	240VAC	120
CON-3/480/30	3	480VAC	40	CON-3/480/125	3	480VAC	120
CON-3/24/50	3	24VAC	50

Advantages: 1.Low VA coil for cooler operation and increased life
2.Quiet operation 3.Universal style mounting bracket existing mounting holes 4.Double brake contacts ensure positive make and break 5.Screw terminal or pressure connectors and double 1/4 quick connects 6.Provided on all models for easy installation Certifications
FAQ 1.Q: Can l get some samples?
A: Yes, sample order is available for quality check and market test.
2. Q: Quality problems?
A: lf there is any quality problem or question, we could offer technical support or return service.
3.Q: Is there any sales promotion product?
A: To meet our competitive global market, we often take sales promotion product for our clients.
Please feel free to contact us at any time.
4.Q: How to assure the client is making profit from our products?
A: Our products have high rate of quality and price, we believe that most of our clients are making aconsiderable profit.
5.Q: When can we get the reply?
A: Any inguiries will be replied within 24 hours, but holidays are excepted.
