PP Camlock Coupling Couplingvalve Parts Coupling
| US$0.10-1.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
1/2"-4"
Connection
Quick Couplings
Surface Treatment
Without Treatment
Head Type
Round
Transport Package
Carton
Specification
1/2"-4"
Origin
Zhejiang China
HS Code
7609000000
Production Capacity
1000000piecese/Year
Product Description
Material:Stainless steel, aluminum, PP, nylon
Item Shape: Camlock Coupling
Handle: SS
Style :A B C D E F DC DP
Size: 1/2"-10" Standard: A-A-59326(D)

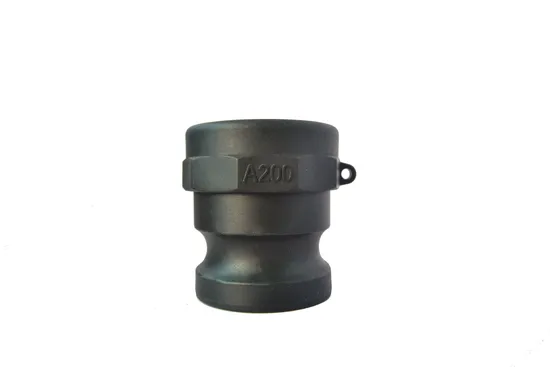

Male Adapter With Female Thread
Product Name: Type A,B\C\D\E\F\DC\DP
Material:Polypropylene
Sizes:1/2″-4″
MOQ: 50 PCS
Customizable contents: sizes, logo
Certificates: CE,ISO9001:2015
Competitive price
To learn more and get a quote, please leave your requirements on the form below.
Description:
Body materials: Polypropylene
Handle: stainless steel
Gaskets:Buna-N (NBR), EPDM
The thread of camlock fittings are BSP,BSPT,NPT
SIZE:1/2″to 4″
Pressure :50-100 Psi( depending on size and temperature)
Operating temperature :-30-70°C (160°F)
When the temperature rises, the working pressure drops
Manufacture method:Injection molding
The use and connection way of cam and groove couplings: Type A camlock can usually be used with type D, type C, type B, type DC (Dust Cap) of the same size. To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
Industry applications:
Industries: chemical, paint, agriculture, municipal, sewage
Applications: chemicals, solvents, varnishes, inks, fertilizers, wastewater
