Product Description

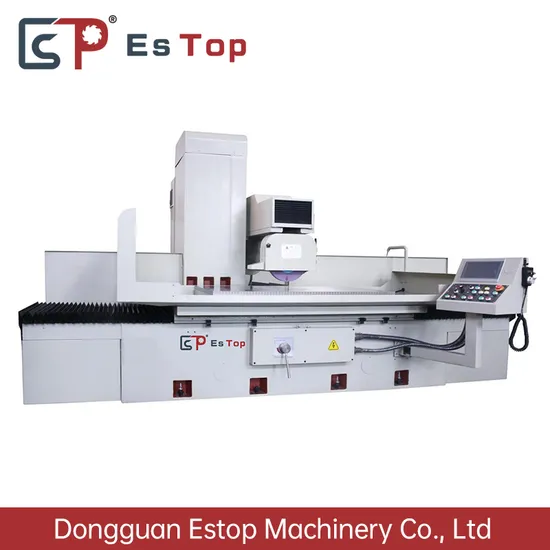

The machine tool ETW-70200 program control adopts the economic numerical control system, the servo motor is controlled by the small programmable controller, and the vertical and horizontal axis feed automatic control is realized. The central control console can set up and store all the process parameters, monitor the current coordinate, grinding process and fault alarm, and reduce labor intensity and improve work efficiency.
The vertical movement of the worktable is hydraulic transmission, using the proportional valve stepless speed regulation and the small thermal deformation of the independent hydraulic station.
The spindle adopts liquid static and static bearing, with good rigidity, high rotation precision and low surface roughness of grinding workpiece.
The guide rail of the worktable and the lateral guideway stickup the polytetrafluoroethylene guideway soft belt, with good wear resistance.
The precision of the precision ball screw for the vertical and lateral feed of the grinding head is high.
The machine has a demagnetization device which is convenient to load and unload the workpiece.
The machine tool has stable movement, stable precision, reliable performance, convenient operation and low noise.
Product Parameters
Specifications of ETW-70200:

	Parameter	Unit	ETW-70200
General Capacity	Worktable size	mm	2000*700
	X axis Travel	mm	2200
	Y axis Travel	mm	770
	Max center of wheel to table	mm	500
	Max loading	kg	5000
Worktable size(X axis)	Table T-slot specification	Mm*n	18*3
	Table speed	m/min	5-30
Y axis	Hand wheel feed degree scale	mm	0.02/5
	Automatic feed	mm	0.05-15
	Fast moving speed	Mm/min	990/1190
Grinding wheel	Grinding wheel max size	mm	D350*D127*20-50
	Grinding wheel speed(50Hz/60HZ)	R.P.M	1450/1740
Z axis	Automatic feed degree scale	mm	0.01-0.08
	Fast moving speed	Mm/min	230
Motor	Spindle motor(Horizontal/Vertical)	HP*P	15*4
	The Z axis motor	W	1500
	Hydraulic motor	HP*P	5*6
	Cooling motor	W	90
	The Y axis motor	W	1500
Size	Machine size	mm	5400*2300*2300
	Weight	kg	8200

Tips: We can customize models according to customer requirements, more Non-standard series please consult the manufacturer. Our Advantages
