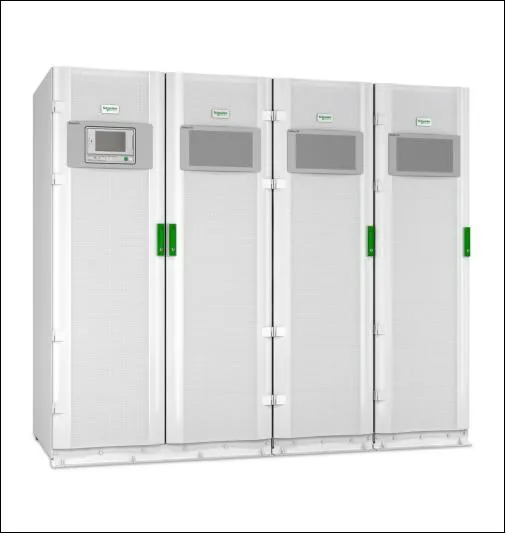

APC Galaxy Vx UPS 750kVA 625kVA 800kVA 99% 480V Online Three Phase Highly Efficien UPS for Computer/Networking/Date Center/Large Facilities
| US$78,956.00-156,203.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
APC Galaxy VX UPS
Protection
Short Circuit
Application
Communication
Classification
Lighting/Power
Standby Time
Standard Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Large Type
Equipment Mode
Decentralized/Centralized Model
Brand
APC
Product Name
APC Galaxy Vx UPS
Rated Capacity
500kVA-1500kVA
Power Factor
1
Input Voltage
380/400/415/440/480 VAC
Input Frequency
50/60Hz
Output Voltage
380/400/415/440/480 VAC
Output Frequency
50/60Hz
Overload Capacity
1 Min @ 150%; 10 Min @ 125%
Double Conversion Mode
up to 97%
Econverison Mode
up to 99%
Eco Mode
up to 99%
Operating Temperature
0-40 °c Without Rating
Storage Temperature
-25 ° to 55 °c (-13-131 °f)
Humidity
0% to 95%
Trademark
APC
Origin
China
HS Code
8504402000
Production Capacity
1000
Product Description
SPECIFCATION| Galaxy VX Technical Specs | 500 KW to 1500 KW UPS |
| Topology | On-line double corversion with eConversion mode |
| Nominsl Power (KVA | 500-1250 kW(1250 kW input/output cabinet) 500-1500 kW(1500 kW input/output cabinet) |
| Technical Power Ratings | 500 kW,625 kW,750 kW,800 KW,1000 KW 1100 kW,1250 kW,1500 kW |
| Parallel capability | Up to 4 units (N+1) |
| Input | |
| Rnctifior Type | GBT active rectifier |
| Nominal Input Voltage | 380V/400V/415V/440V/480V 3-wire (3PH+PE)or4wire(3PH+PE+N) (600 V with optional external transformer) |
| nput Voltage Range | +20%/-15% |
| nput Connection | Single or dual feed |
| nput Frequency | 50 or 60 Hz nominal (40-70 Hz) |
| nput Current Total Harmonic Distortion (THDI) | <3% @100%load |
| nput Power Factor | >0.99 |
| Walk-in | 0 to 300s(configurable) |
| Short Circuit Withstand Rating | 100 kA |
| Output | |
| Inverter Type | 4 Level IGBT,high efficiency,transformerless |
| Nominal Output Voltages | 380V/400V/415V/440V/480 V 3-wire (3PH+PE)or4wire (3PH+PE+N) (600 V with optional external transformer |
| Load Power Factor | 0.7 leading to 0.5 lagging without UPS derating |
| Valtage Regulatio | +/-1% |
| Frequency Ragulation | 50/60Hz +/-0.1%(free running |
| Overload in Norma Operation (at 40 ºC) | Continuous up to 110%10 minutes up to 125% 1 minute up to 150% |
| Overload in Bypass Operation (at 40°C) | Continuous up to 110%(380V/400V/ 415V/440V) Continuous up to 125%(480 V) 1 minute up to 150%(all voltages) |
| Output Voltage Distortion (THDU) | <2%at 100%linear load; <3%at 100%nonlinear load |
| Output Power Factor | 1.0 KVA =kW |
| Eficiency details | |
| Double conversion mode | Up to 96.5% |
| eConversion mode | Up to 99% |
| Energy storage parameters | |
| Type | Lithium-ion,VRLA,Wet Call,Flywheel |
| Nominal DC Bus Voltage | 480VDC |
| Common battery string | Yos (VRLA only |
| Galaxy VX Technical Specs | 500 KW to 1500 KW UPS |
| Communication | |
| Multilingual Graphics 1CD Displa | Yes |
| Compatibility with APC Communication cards | AP9630 |
| Communication Details | Modbus TCPAIP SNMP Email Modbus RS-485 (optional) |
| Mechanical dimensions | |
| 1250 kW VO Cabinet (H xWx D) | |
| 500 kW | 77.6x94.4x35.4in(1970x2400x900 mm) |
| 625/750 kW | 77.6x118.1x35.4in(1970x3000x900 mm) |
| 800/1000 kW | 77.6x141.6x35.4in(1970x3600x900 mm |
| 1100/1250 kW | 77.6x165.2x35.4in(1970x4200x900 mm) |
| 1250 kW N+1 | 77.6x188.8x35.4in(1970x4800x900 mm) |
| 1500 kW VO Cabinet (H xWx D) | |
| 500kW | 77.6x126x35.4in(1970x3200x 900 mm |
| 750KW | 77.6x149.6x35.4in(1970x3800x 900 mm |
| 1000 kW | 77.6x173.2x35.4in(1970x4400x900 mm) |
| 1250 kW | 77.6x196.9x35.4in(1970x5000x900 mm) |
| 1500 kW | 77.6x220.5x35.4in(1970x5600x900 mm |
| 1500 kW N+1 | 77.6x245.1x35.4in(1970x6200x900 mm |
| Standards and approvals | |
| Performance and Safety | UL 17785th edition,cUL CE,IEC 62040-1 EC 62040-3 (VFI-SS-111) |
| EMC Emissions | FCC 47 Part 15 EC 62040-2 |
| Seismic | OSHPD BC 2012 |
| Surge | ANSI 62.4/B3 |
| P lewel (Ingress Protection) | IP20 |
| Ervironment | |
| Operating Temperature | 0-40°ºC(32-104 F)without derating |
| Humidity | 0-95%noncondonsing |
| Elevation /Altitude | 1000 m(3333 ft)100%load without derating |
| Standard features | |
| Soft Start,Walk-in Charger for Compatibility with Gensets | Yes,Adaptative,Configurable 1 to 300s |
| Cold Start Function (start without mains) | Yes |
| Emergency Stop (EPO) | No |
| Frequency Converter | Yes |
| Backleed Protection | Yes |
| Smart Power Test (SpoT) | Yes |
Certifications
Packaging & Shipping
1. May I take some samples to test before I placing the order? Yes, we can offer sample testing for you to verify product quality and performance. 2. What is the warranty? We support 1 years warranty. 3.What can you buy from us? Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on. 4. What payment methods does your conmpany support? We could accept T/T, credit card, Alipay or L/C at sight. 5. What are the terms can you offer for us? We could offer EXW, FOB, CIF, DDP and so on.
