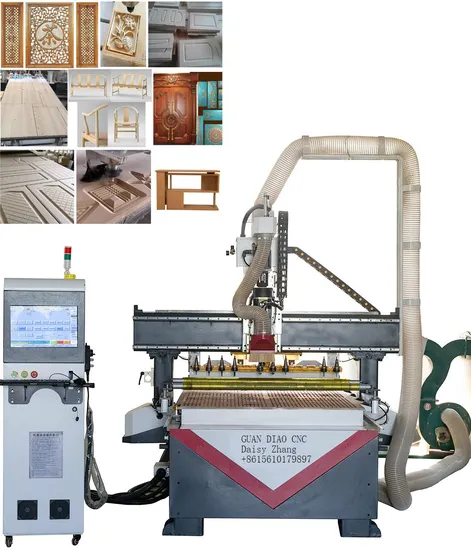

3 4 Multi Spindles 3 Heads DSP Vacuum Table MDF Cutting Furniture Cabinet Atc 3D Wood Working 1325/2040 CNC Router Engraving Machine with CE FDA

Product Description

Product Parameters

Model	GD-1325A/GD-1325B
Working area	1300*2500mm
Table size	1740*3100mm
Z-axis working area	200-300mm(optional)
Resolution	+/- 0.01mm
Max Cutting Speed	70m/min
X and Y axis transmission	Germany Herion 1.5MRack and Pinion
Z-axis transmission	Germany TBI Ball Screw
Guide rail	Taiwan Hiwin 25mm Linear rail
Spindle	9.0KW, air-cooling ATC SPINDLE
Working Mode	1.5KW Servo motor
XY Transmission	Imported Rack
Z transmission	Taiwan TBI Ball screw
Reudcer	Japan Shimpo
Auto Tool Change	Yes, Linear type
Dust-collection function	Yes
Working table	T slot Vacuum table 6 And T clamp combination
Air pump	7.5KW
Dust collector	4KW,double bags
Inverter	HPMANT 11KW
Software	Artcam
Command	G code, HPGL,U00, mmg, plt
Lathe Structure	Seamless welded steel, trapezoidal stable and strong lathe bed
Auto Lubrication	Yes
Operating System	Taiwan JINKE Control System(Support multilingual)
Standard power	3P 380V,50Hz
Package	Plywood case
Warranty for the spindle	Half a year
Warranty for the machine	One year
Delivery time	10 working days
Packing size	4.6*2*2.21m

Detailed Photos
WORKING TABLE CONTROL VALVE Vacuum+T-slot table 6 valves repectively control 6 zones of the vacuum table
work table is divided into 6 partitions,are controlled separately Pressure can be adjusted separately.
SERVO MOTOR 9KW ATC SPINDLE 1.5KW LEADSHIN Servo motor 9KW ATC Air Cooling Spindle
Can bereplaced with Japanese Yasukawa Servo motor Can bereplaced with HSD ,Fast Speed and High efficiency
FREQUENCY CONVERTER CONTROL SYSTEM
HPMOT 11KW Frequency Converter TAIWAN JINKE Large Screen Operating System
Stable and efficient work Support English, Spanish, Japanese, Vietnamese
Multifunctional Pressure Roller Tools Magazine Knife Holder Auxiliary fixing materials 8/10/12/16 Linear toolsmagazine can choose Humanized design,Easy to change tools
TOOLS SETTERS AUTOMATIC OILING AUXILIARY PUTTER
Application
* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
NEW 1325/1530 woodworking cnc atc machine linear type atc tool changer cnc router with 12/16 pcs tools atc nesting machine 2040
Company Profile
Shandong Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development,production, sales and good after- sales service. The company's main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router , Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc. Products applied to the panel furniture, European furniture, solid wood furniture, advertising, stone, building decoration, handicrafts, mold making, staircases column, PCB printing, automotive industry, packaging industry, shipbuilding, wood manufacturing, watches and clocks, accessories, seals and other industries.After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world.
Certifications
Packaging & Shipping
Our Services
1. Delivery and Lead time:
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
2.Warranty:
Machine warranty is 12 months. Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free. Out of warranty, will collect the accessories cost. Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided 24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone Technical support by email, whatsapp, wechat,imo and skype available on time.
4.After sale service:
Normally the machine will sent on whole except the machine is over size to load container. so the machine arrange in production immediately after get electricity (air and water some model needed).

5.We accept the ODM,OEM If you have other needs, please let me know
