CNC Swiss Lathe Machine Turning Milling Composite Metal Machining Lathe

Product Description

Product Description

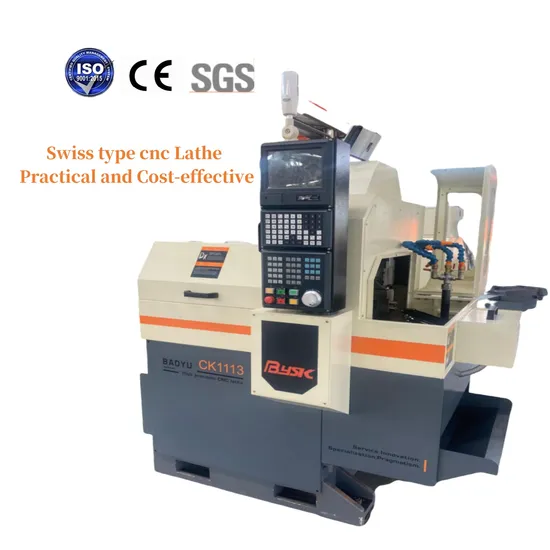

Cnc Swiss Lathe Machine Turning Milling Composite Metal Machining Lathe
-- CK1113 is a 3 axis sliding headstock lathe with single spindle
-- Suitable for processing profile diameter ≤ Φ 13mm.
-- Mainly suitable for Large-scale, Multi-variety and high-precision processing of slender shaft parts with large length/diamater ratio and small ,special-shaped parts.
Product Parameters
CK1113 Swiss type CNC Lathe

Power	Rated Voltage	Three-phase AC380V
	Rated Frequency	50HZ
	Total Input Power	5kW
CNC System	BYSK	YZ190
	Minimum Set Unit	0.001mm
	X Axis Pulse Equivalent	0.0005mm
	Y Axis Pulse Equivalent	0.001mm
	Z Axis Pulse Equivalent	0.001mm
	Maximum Programming Size	±9999.999
	Cutting Speed	1--4000mm/min
	X Axis Rapid Feed Speed	24000mm/min
	Y Axis Rapid Feed Speed	24000mm/min
	Z Axis Rapid Feed Speed	24000mm/min
Main Spindle	Maximum Bar Diameter	Φ13mm
	Main Spindle Through-hole Diameter	Φ14mm
	Main Spindle Center Height from Ground	980mm
	Main Spindle Speed	0-5000r/min
	Main Spindle Motor Power	2kW
Travel	X Axis Travel	60mm(Diameter)
	Y Axis Travel	200mm
	Z Axis Travel	180mm
	X Axis Servo Motor Power	0.75kW
	Y Axis Servo Motor Power	0.75kW
	Z Axis Servo Motor Power	0.75kW
	Guide Rail Form	Linear Guide Rail

Gang Tooling System	Tools Arrangement	10pcs
	Turning&Milling Tools	6pcs
	Tool Size	10*10mm
	Front Drilling	4pcs
	Drilling Shaft Size	ER11/16mm
Cooling System	Cutting Oil Motor Power	0.18kW
	Cooling Box Capacity	55L
Lubrication System	Motor Power	35W
	Capacity	2L
Pneumatic System	Input Compressed Air Pressure	0.4--0.6Mpa
lathe Size	Length * Width * Height	1530*1150*1790
	Machine Weight	800kg

CK1113 Configurations
Item	Specification	Origins
CNC System	YZ190	Baoyu BYSK
Main Spindle Motor	2kW Absolute Value Servo Motor	Inovance+Lines
X Axis Motor	0.75kW Absolute Value Servo Motor	Inovance+Lines
Y Axis Motor	0.75kW Absolute Value Servo Motor	Inovance+Lines
Z Axis Motor	0.75kW Absolute Value Servo Motor	Inovance+Lines
X Axis Screw Rod	232*2005	Taiwan Joint Venture
Y Axis Srew Rod	408*2005	Taiwan Joint Venture
Z Axis Screw Rod	340*2005	Taiwan Joint Venture
X Axis Guide Rail	HGW20	HIWIN/PMI/THK
Y Axis Guide Rail	HGH20	HIWIN/PMI/THK
Z Axis Guide Rail	HGH20	HIWIN/PMI/THK

Optional Configurations
Rotating Center Frame	Valid Traveling	100mm
Side Milling Power Head	Chuck ER11+ER16	2pcs+1pc
	Power	0.4kW
	Speed of Rotation	5000r/min

Detailed Photos
Body Materials

CNC Control System
Baoyu bysk 190: Easily operate, meet all functions
The panel can be moved and swiveled for operating
Inner Structure
Inner Structure Features :
The number of tools is muitiple and the tool exchange is fast Mainly process all kinds of super slender parts The power head meets the needs of turning and milling complex processing(the live head can be selected). Reasonable layout, small dimension and cover little area

Electrical Cabinet And Driver Cabinet
With Configurations
CK1113 CNC Lathe will configurated with oil film bar feeder, with high-pressure oil pump,oil mist machine, improve the performance of lathe,extend the life of lathe.
Processed Product Display

Some Suggestions

--Max profile diameter within 7mm, suggest model B07,CK1107. B07 is with dual spindle type, CK1107 is single spindle type.
--Max profile diameter within 13mm, suggest our model B13,CK1113.
--CK0620A2 particularly suitable for processing of complex-shaped parts such as linear/taper/arc threads, Configurated with center frame can process slender shaft parts.
--CK0625A is suitable processing of various precision parts such as instruments/meters/electronic connectors/optics/ automotive and motorcycle parts/small hardware.
--CK32A3 is multi-functional Turning&Milling CNC Lathe, CK32A3-B is with dual spindle based on CK32A3.
--X42 is slant-bed cnc lathe, suitable for processing of shaft/disc parts with complex/variety of sizes/high precision request.
--More details pls contact us, or send your drawings of profiles, we will give you professional recommendation.
Company Profile
Anhui Yuzhou Machine Tool Co.,ltd (BYSK Baoyu CNC ) is a comprehensive high-tech enterprise integarting R&D,Production,Sales &services of CNC system, CNC machine tool, automatic production line, Industrial robot, Internet of things and other products. BYSK CNC formerly known as Zhejiang Baoyu CNC Machine Tool Co.,ltd, and has a manufacturing base covering an area of 35,000 square meters in Taizhou,Zhejiang; It has a R&D center in Hangzhou, named as Hangzhou AOGE CNC Technology Co.,ltd. 2013 year, Anhui Yuzhou Machine Tool Co.,ltd bulit at Anhui Guangde city, covers 100,000 square meters.
We company specializes in the production of CNC SWISS-type/Sliding Headstock Lathes,High-Precision Gang-type CNC Lathes,Turning&Milling Compund Centers, Flat Bed CNC Lathe Machines,Slant-Bed CNC Lathes, Horizontal CNC Lathes, Vertical CNC Lathes,Single spindle CNC Machinery,Automatic Double-Spindle Lathes etc. Our Lathes all adopts absolute value servo and bus connection. It's over 10 on invention patens, utility models and design patens. It's products are widely appled in Communication Equipments,Connectors, 5G Products, Mobile Phones, Household Applications, War Industry, Spaceflight, Medical Devices, Car, Water Heating, Miniature Shaft, Optical Instrument, Timepiece, Glasses and various hardware accessories. Cost-effective products are ideal equipment for automatic batch production in all fields.
We adopts modern management concepts, deepends internal managements, we continuously improved the manufacturing process and services of products, it has successfully passed ISO9001(2016 Quality Management System), ISO14001(2016 Environment Management System), Measurement Management System Certificate, and obtained Good Standardization Certificate, Otherwise, we products also have passed CE Certificate and other authoritative certifications.
As an independent production enterprise, we always have the concept of improving the added value of individual products, Implemented the mission of "Provide high-quality products and best servises, and create the most hightest value for our customers", Carry out the business philosophy of " Service,Innovation,Specialization,Pragmatism", Finally realizes our vision of "Provide the most cost-effective machine tools for the world."
Packaging & Shipping
FAQ
1. Do you accept OEM/ODM?
Reply: Yes. OEM/ODM are welcomed.
2.How many years of production experience does your company have?
R: Over 10 years,We have several professional and experienced technical instructors to guide you for after-sales.
3. Is it possible to deliver quickly (or how many days is the delivery guaranteed, the delivery deadline)?
R: Yes, in common condition , lead time about 30- 45 work days
4.What are the after-sales services?
R: We have professional technical team, can solve your problem 24 hours online.
5. Does this product accept customized services? What specific aspects can be customized? (Such as color, shape, size, etc.;)
R: Yes , customized service is workable , like print your company logo etc.
6. Do you accept small quantity orders (or what is the minimum order quantity, etc.)?
R: Yes, 1 set machine also be available.
7. What are the characteristics of the material of this product?
R: High quality gray cast iron with CE Certificate.
8. What are the unique functions and features of this product?
R: Comparable to European quality Swiss type cnc lathe machine, With high cost-effective, and obtained multiple domestic certifications in China, in addition, As an independent production enterprisewe have ourself technical research team.
9. What are the application areas or uses of this product?
R: Widely appled in Communication Equipments,Connectors, 5G Products, Mobile Phones, Household Applications, War Industry, Spaceflight, Medical Devices, Car, Water Heating, Miniature Shaft, Optical Instrument, Timepiece, Glasses and various hardware accessories.
10. Is it in stock? Can it be wholesaled?
R: Some models have, need confirm
11. Are there any second-hand products for sale?
R: No,sorry
12. What cnc system you use?
R: Our cnc operate system is the BYSK190, this is our company's own brand, and has always been popular in the market because of its easy operation and comprehensive functions, in addition, LNC system also be optional.
13. Are you factory ? and where is your factory located ? How can i have a visit there ?
R: Yes it is. Our company is located at Jianshe Road No.1, Economical District, Guangde,Xuancheng City,Anhui Pronvince. You are warmly welcomed to visit us.
