Precision Semi-Conductor Bar Cutting Technology for Advanced Solar Production

Product Description

Equipment Use: Engineered for optimal cutting precision, this advanced model is tailored to meet customer expectations with its impressive roller length of 690mm and a versatile table size of 170/145mm*690mm*160mm*2 version. Perfectly crafted for cutting products with a wide range of thicknesses from 0.3mm to 65mm.

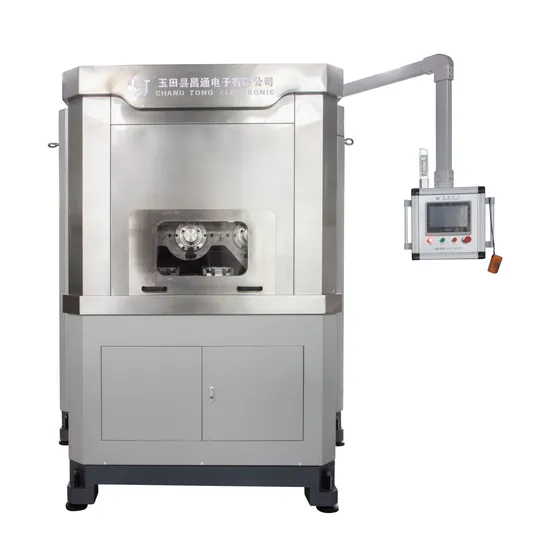

Introducing the CHTXQ-690F Double Plate Multi-Wire Cutting Machine – A Showcase of Outstanding Product Characteristics.
1. Powered by four independently-driven motors, each roller is finely tuned to reduce steel wire wear, significantly extending the lifespan of the rollers. The roller brackets are precision-molded, ensuring alignment with spindle installation coaxial standards for seamless operation.
2. An intuitive LED display option presents cutting data in a clear and insightful manner, enhancing user interaction and understanding.
3. The innovative under-table cutting mechanism facilitates convenient loading and unloading of materials from the bottom up, streamlining operations.
4. Available in both standard and high-speed models, the high-speed version excels in faster processing, superior line speed, and remarkable cutting efficiency, making it ideal for thinner diamond lines.
5. Equipped with transverse movement capabilities, this table adeptly moves back and forth, offering flexibility to cut tiles and enabling a single-line cutting function for enhanced versatility.
6. Featuring a generously spacious loading area of 170/145mm*690mm*160mm*2 version, this model significantly amplifies cutting efficiency for large-scale projects.
7. With unmatched spindle accuracy of ≤0.01mm, this machine utilizes a patented structure dust (Patent No. ZL201320681902.7) ensuring stable operations and effortless disassembly.
8. Designed with user-friendliness in mind, the machine boasts an automatic lifting shield, a fully extended workbench, and straightforward material and roll handling capabilities, simplifying the user experience.

	unit	parameter
Maximum Worksize	mm	170/145*690*160*2
cutting thickness	mm	0.6~65
running speed	m/min	0~2200
Table lift stroke	mm	220
Table cutting feed speed	mm/hour	0.1~100
The amount of wire output from the supply wheel	Km	30(φ0.2diamond wire)
Diamond diameter	mm	φ0.06~φ0.35axle
Roller outside diameter*number of axles	mm	φ155/φ180*690*4
boundary dimension	mm	≈1830*2800*2650
machine weight	Kg	6500~115000
power		AC380V/50HZ three-phase four-wire
Total machine power rating	Kw	54 above

This state-of-the-art double-station multi-wire cutting machine is expertly crafted to handle diamond wire products, efficiently processing two plate materials simultaneously. With an impressive roller length of 690mm, it maximizes cutting area (220mm*690mm*160mm*2 version) and supports both single and multi-line functions, tailored for hard and brittle material batch processing.
A high-performance multi-line cutting machine designed for diamond line processing, featuring a roller length of 570mm and a maximum cutting area of 220mm*570mm*160mm. Ideal for slicing open products with thicknesses from 0.3mm to 65mm, it specializes in batch processing of hard and brittle materials.
This compact multi-line cutting machine, available in single and double station models, is perfect for small-batch product processing. With easy and convenient specification replacements, it efficiently manages cutting sheet thicknesses ranging from 0.5mm to 30mm, offering both single and multi-line cutting functions for hard and brittle materials.
>Stable Wire Web Control
Our precision-engineered, cone-positioned structure endows rollers and wire spools with exceptional accuracy and rigidity, effectively minimizing wire web shaking for superior results.
>Optimized Pulley System
Incorporating an innovative design of 8 pulleys, this system significantly reduces diamond wire torsion, stabilizes tension fluctuations, and minimizes wire breakage rate, ensuring reliability and precision.
>Easy Wire Winding
The wire pay-off wheel uses the standard universal spool (PV600 reinforced I-wheel), eliminating the need for rewinding, which streamlines your process and enhances efficiency.
>Safety Guarantee
The main operation door is equipped with an electrically adjustable mechanism for raising and lowering, along with a robust safety device to ensure complete protection during operations.
>Wire Break Memory System.
>Easy Operation
With an open cutting room accessible from three sides, this design ensures simpler operation and maintenance, placing user convenience and efficiency at the forefront.
