Durable 100MPa Hydraulic Pressure Gauge with M20*1.5 Connector

Product Description

Product Description Overview

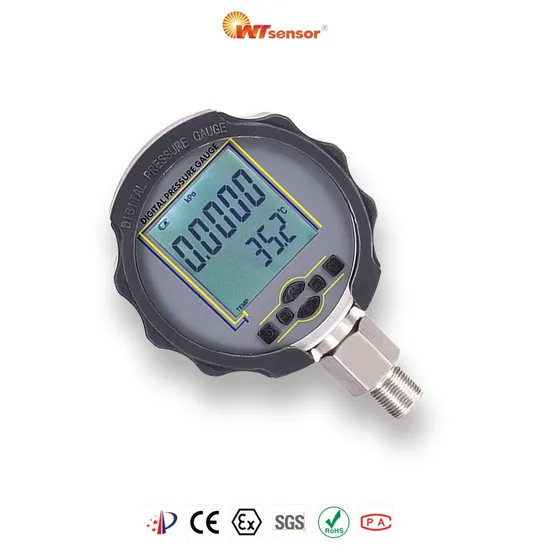

PCM510 is a high-precision digital pressure gauge adopts a 55x55mm large-size LCD screen.It uses a crossover display of the main screen and the sub-screen.It can display the real-time pressure and simultaneously display the reference data such as the on-site temperature and pressure maximum/minimum.
PCM510 is powerful,preset 10 pressure units,adjustable pressure sampling rate,battery power display,the product is equipped with USB external power supply and battery dual power supply mode.
PCM510 is powered by three 5th batteries and features an ultra-low power design forup to 3,600 hours of battery life.The product adopts high-precision ADC and high-speed microprocessor,full digital design,high precision and good stability.
PCM510 is made of 304 stainless steel material,equipped with carrying case and power supply accessory,which is beautiful and practical.
Features
5 digits LCD showing
pressure accurately in real time, easy for observation
Various pressure units, zero clearing, backlight, on/off
functions
10 units are avoiloble:MPa/kPa/psi/ BAR/Pa/mBAR/mmHg/mH2O/Tor/ Ko/en
low power design,3 AA batteries and can lasts up to 3600 hours
Application
Machinery and electronics
Supporting equipment of instruments
Pressure laboratory
Mechanical engineering automation
Product Parameters

Performance parameters
Pressure range	- 100kPa …0~ 10kPa … 100MPa
Dial Size	105mm
Accuracy	0.1%FS
Backlight color	White
Operating temp.	- 5~40ºC
Compensated temp.	0~40ºC
Electrical protection	Anti Electro Magnetic interference
Sampling frequency	1-10 times/second
Overload Capacity	150%(>10MPa);200%(≤10MPa)
Long term stability	±0.1%FS/year (typical)
Connection	M20*1.5 G1/4 G1/2 or 1/4NPT 1/2NPT(customized)
Connection Material	304SS
Shell Material	304SS
Power Supply	3 AA batteries or USB supply
IP rating	IP50(IP54with protection sleeve)

Pressure range selection
Pressure range code	Pressure reference	Pressure range	Overpressure	Burst pressure	Remark
N1k	G	-100kPa~0	200%FS	400%FS
NP100k	G	±100kPa	200%FS	500%FS
N4k	G	-100~ 160kPa	200%FS	500%FS
N5k	G	-100~250kPa	200%FS	500%FS
N6k	G	-100~400kPa	200%FS	500%FS
N7k	G	-100~600kPa	200%FS	500%FS
N8M	G	-0.1~ 1MPa	200%FS	500%FS
N9M	G	-0.1~ 1.6MPa	200%FS	500%FS
5kG	G	5kPa	200%FS	500%FS
10kG	G	10kPa	300%FS	600%FS
16kG	G	16kPa	300%FS	600%FS
25kG	G	25kPa	300%FS	600%FS
40kG	G	40kPa	300%FS	600%FS
60kG	G	60kPa	300%FS	600%FS
100kG	G	100kPa	200%FS	500%FS
160kG	G	160kPa	200%FS	500%FS
250kG	G	250kPa	200%FS	500%FS
400kG	G	400kPa	200%FS	500%FS
600kG	G	600kPa	200%FS	500%FS
1MG	G	1MPa	200%FS	500%FS
1.6MS	S	1.6MPa	200%FS	500%FS
2.5MS	S	2.5MPa	200%FS	500%FS
4MS	S	4MPa	200%FS	400%FS
6MS	S	6MPa	200%FS	400%FS
10MS	S	10MPa	200%FS	400%FS
16MS	S	16MPa	200%FS	400%FS
25MS	S	25MPa	150%FS	300%FS
40MS	S	40MPa	150%FS	300%FS
60MS	S	60MPa	150%FS	300%FS
