X8126 Universal Tool Metal Milling Machine

Product Description

Overview

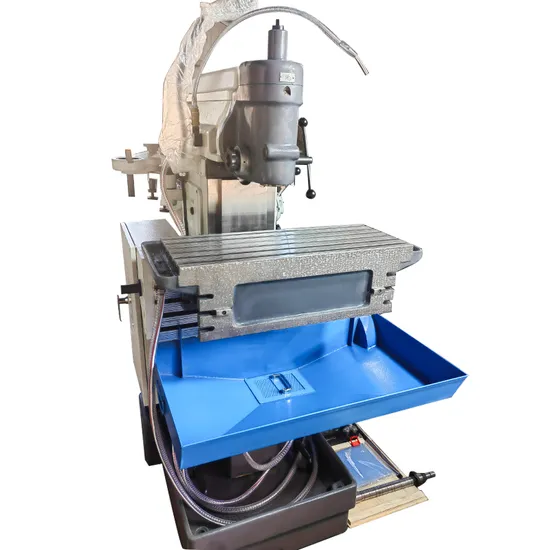

X8126 Universal milling machine

X8126 universal milling machine can complete boring, milling, drilling, inserting and other cutting processing, suitable for processing a variety of tools, fixtures, die, die and other mechanical products manufacturing and processing, medium and small molds and other complex parts, with a variety of special accessories can complete arc, rack, gear, spline and other parts processing. Machine tool accessories are: vertical milling head, dividing head, disk table, Angle table and vice, so strong function, wide use.
1,Novel structure, wide versatility, high precision, easy to operate.
2,The use of a variety of accessories, can expand the scope of use, improve the utilization rate.
3,X8126: equipped with programmable digital display system, wide grid ruler resolution is 0.01mm.
Matters Needing Attention:
1,Loading and unloading parts, must remove the tool, cutting head, hand must not be close to the milling surface.
2,When using the milling machine to the knife, it must be slow or hand into, no fast forward, no stopping when walking the knife.
3,Fast advance and retreat knife pay attention to whether the milling machine handle will hit people.
4,Feed not too fast, no sudden change, milling machine limit block should be adjusted.
5,Up and down and measuring the workpiece, adjusting the tool, fastening the speed, must stop the milling machine.
6,Disassemble the end mill, the working table should be covered with wood, disassemble the milling cutter nut, the force should not be too strong.
7,Do not touch or use cotton yarn to wipe the rotating parts and tools, do not use the hand to support the cutter.
Product Parameters

(X8126A Technical Parameters)
Item	Details
Distance from horizontal spindle centerline to table surface	First installation position35-385mm Second installation position42-392mm Third installation position132-482mm
Longitudinal stroke of table(mm)	350
Lifting stroke of table(mm)	350
Table feeding steps	8(Eight steps)
Table longitudinal and lifting feed range	25-285mm/min
Table speed of vertical and vertical rapid movement	1000mm/min
Number of T-slot	6
Width of T-slot(mm)	14
Distance of T-slot(mm)	45
Table size(longxwide)(mm)	750x260
Number of T-slot	5
Width of T-slot (mm)	14
Distance ofT-slot(mm)	45
Spindle taper of X8126A	7:24 IS040
Lateral movement stroke of spindle (mm)	200
Travel per revolution of the dial(mm)	1.5
Spindle speed steps	8
Spindle speed range	110-1230r/min
Spindle feeding steps	8
Spindle feed range	25-285mm/min
Spindle taper	7:24 IS040
Manual axial movement of the spindle (mm)	80
The movement of each grid on the dial(mm)	0.5
Spindle body rotation angle	-45
Spindle speed level	8
Spindle speed range	150-1660r/min
Distance from the centerline of the horizontal spindle to the lower plane of the upper beam(mm)	96
Distance fromthe front edge of the horizontal tableand thefront plane of the vertical guide rail of the bed due todifferent installation positions(mm)	212-412
Distance between the centerline of the vertical spindle andthe front plane of the vertical guide rail of the bed(mm)	155
Distance between the lower end face of the vertical spindleand the plane on the horizontal table(mm)	0-285
Total power capacity(kVA)	4
Main motor power(kw)	3
Main motor speed(r/min)	1430
Cooling water pump motor(w)	40
Machine tool dimensions(longxwide xhigh)(mm)	1450x1445x1650

Machine Details
