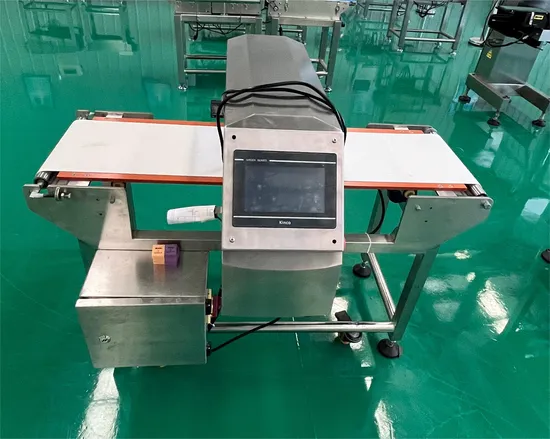

Industrial Metal Food Metal Detector Machine for The Dry and Wet Food

Product Description

Product Description X-Ray inspection system is used for detecting contaminants inside the products. Metal and non-metal, such as stainless steel, glass, ceramic, stone, bones, had rubber and hard plastic, even for products wrapped in aluminium foil or metallised film etc. The foreign object is detectable by its density. The greater density they have, the easier they can be found. That is why we normally use X-RAY inspection system to detect even the most minute contaminants.

Product Parameters

Model	TTX-2417K100	TTX-4017K100	TTX-5026K100	TTX-6035K100
X-ray Light Source	150W/100kV	210W/100kV	350W/100kV
Detection Width	240mm	400mm	500mm	600mm
Detection Height	170mm	170mm	260mm	350mm
Transfer Speed	10-70m/min
Accuracy	SUS ball 0.3mm, SUS wire 0.2*2mm
HMI	Germany 17 inch touch screen
Connectivicy	LAN port, USB port
Working Environment	Working temperature -10ºC~40ºC Working Humidity: 30%~90%, No dewing
X-ray Leakage	1 millisievert/hour
Protection Method	Lead-free protective curtain
Alarming Method	Acousto-optic alarming
Power Supply	AC220V 50/60Hz, 1.5KVA Max
Body Material	SUS 304

Certifications
Company Profile Anhui UUPAC Intelligent Equipment Co., Ltd. was established in 2009, focusing on the R & D, manufacturing and sales of Multi-hea Weighers, VFFS, Conveyors and Inspection equipment, the products are exported to more than 80 countries and regions.Company's 10,12,14,20,24,32 head microcomputer control and PLC control system intelligent combination scale, automatic weight detection machine and 1,2,4,8 head linear scale,creates and applies the combination scale developed by Siemens PLC and Allen Bradley PLC in China, which fills the technical gap of the same industry in China.Anhui UUPAC Intelligent Equipment Co., Ltd. adheres to customer-oriented, provides innovative, attractive and easy-to-use products for customers, and is committed to improving people's working conditions.Pre-sales guidance service: provide professional solutions from workers, equipment, packaging materials, packaging methods and working environment.
Packaging & Shipping
FAQ 1. Where is your factory located?Our factory is located in Hefei City,Anhui Province which near Shanghai,about 2 hours by train.
our machines are designed easy for installation; Installation video is also available. If needed, we'll arrange professional engineer to service overseas if buyers bear related cost.2. How to install the machine?Our machines are designed easy for installation; Installation video is also available. If needed, we'll arrange professional engineer to service overseas if buyers bear related cost.
3. Do you have aftersales service for this machine?We have experienced after-sales team ready to solve the problems for our buyers. Buyers describe the problems to us by email or telephone; sometimes we need you to supply the problem pictures and videos for our engineers for reference, we will try to discuss with buyers and try to get the most effective solution in shortest time. If necessary, we can arrange the most professional engineer to go to buyer's factory for solving problems as soon as possible.4. How about your warranty?We offer one year warranty and life-long maintenance. In the first year, if any parts broken not occurred by human factor and parts not in the list of 1% free spare parts, we will supply the new replacement parts freely.
5. Do you have OEM service?Yes. OEM service is available. Our designer would make your private idea into being. We will protect your sales area, ideas of design and all private information belonged to you.
