Self-Propelled Wheat Combine Harvester (4LZ-7B)

Product Description

Self-Propelled Wheat Combine Harvester (4LZ-7B)
1. Why choose us?
FOTMA is the leading and professional supplier in China for rice & wheat mini combine harvester!
FOTMA has over than 17 years experience with combine harvester and agricultural machine!
FOTMA can supply the best price and professional service!
FOTMA has good reputation with all world customers!
FOTMA is 13 year Gold Member at Made In China!
2. Product description
Our combine harvesters are high working efficiency and low cost, which is strong power, simple operation, more peace of mind, excellent quality, better durability, large and fast feeding and harvesting.
3. Characteristics
1. The imported HST gearbox is adopted, tailored and specialized for this model to achieve reasonable matching.
2. Equipped with a high-powered engine, giving a strong driving force.
3. Equipped with a wide-swath header, able to achieve large feeding operation.
4. Features
I. Large feed capacity, high efficiency
1. Equipped with 125hp powerful engine 920mm widened header bridge increases fluent flow of crops and feed capacity.
2. Capable of threshing and perform a complete and full separation by using tangential flow + transverse axial flow cylinder threshing and separating technology.
3. Improving threshing components to achieve better threshing and separating effects and a high harvest efficiency.
II. Easy operation, reliable performance
4. Enhanced transmission with a large load-bearing capacity and high operational reliability.
5.Enlarging the screening area by using a reciprocating-type screening system in order to allow the plate to vibrate and the screen to move in opposite directions, would reduce the overall vibration and increase the screening capability, achieving better screening effects.
6. Equipped with GPS navigation system (optional) and alarm device for monitoring the revolving speeds of the axial flow cylinder , the re-thresher and the elevator. It provides a higher degree of automation
Multiple Purposes Machine to Meet More Demands.
III. Easy maintenance, comfortable driving and ride
7.New radiator dust proof cover with high efficiency, providing easy usage and maintenance.
8. New luxurious cabin in with lower temperature, reduced noise and lower vibration, equipped with built-in air conditioner and luxurious seats, providing a comfortable driving and ride based on ergonomic principles.
5. Technical parameters

Model		4LZ-7B
Feed capacity(kg/s)		7.0
Min. ground clearance(mm)		280
Dimension(L*W*H)(mm)		6600*3000*3420
Mass(kg)		5100
Oil consumption(kg/hm2)		≤35
Cutting width(mm)		2580
Engine	Model	Yuchai TB90B313-3VBS5-YZ engine(140hp)
	Type	4-cylinder in-line direct-injection water cooling
	Rated power(kw)	103
Drive system-hydraulic chassis	Transmission	Mechanical + stepless hydraulic speed regulating (HST)
	Number of shifting positions	Stepless speed
	Walking speed(km/h)	0-5.8
Threshing and cleaning		Tangential flow+horizontal axle flow
Unloading	Grain unloading type	Mechanical unloading
	Grain tank volume(m³)	2.0
Gearbox		Mechanical

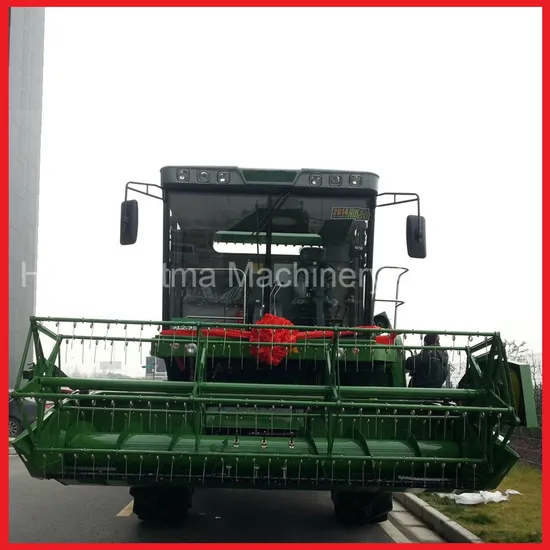

6. Photos
7. Payment
If you would like to get an offer or place an order, Contact us with the products name, model, quantity desired or a description if not listed in our website. All of our prices are for dealership based on wholesale purchase. We offer various payment options such as Wire Transfer (T/T), Letter of Credit at sight, Paypal, Westunion etc.
8. Shipping
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
9. Contact us
Ms. Mavis Zheng
Hubei FOTMA Machinery Co., Ltd
Add: No. 52 Guanggu Avenue, Hongshan, Wuhan city, Hubei Province, P.R.China.
