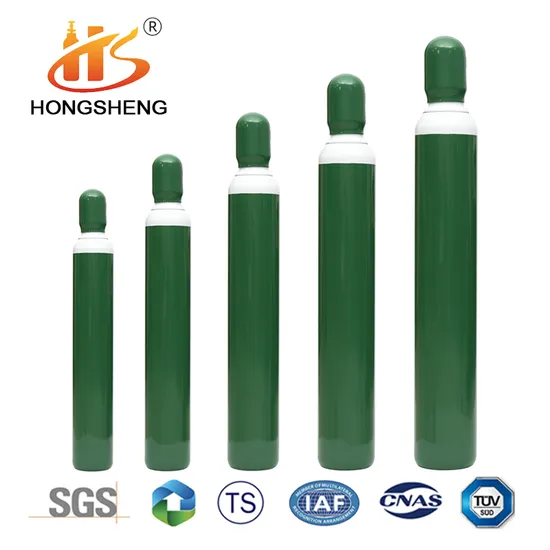

20% off ISO Oxygen Cylinder with UHP Oxygen/Nitrogen/ Argon/ Helium /CO2/Ethylene/Hydrogen /Propane/Acetylene Gas Cylinder

Product Description

99.9% - 99.99% pure Carbon monoxide Gas CO gas

Shandong Hongsheng Pressure Vessel Co., Ltd. is a professional global gas cylinder manufacturer registered in China.
Registered in Qihe County, Dezhou City, Shandong Province, China, the company has obtained the Chinese production cylinder B1 license and TUV, CE certification
99.9%-99.99% pure carbon monoxide gas Carbon monoxide gas
Product Information:
1, carbon monoxide, is a kind of carbon oxygen compound, chemical formula is CO, molecular weight 28.0101, usually is colorless, odorless, tasteless gas.
2, physical properties, carbon monoxide melting point of -205ºC, boiling point of -191.5ºC, difficult to dissolve in water (20ºC in water solubility of 0.002838g), not easy to liquify and cure.
3, chemical properties, carbon monoxide both reducing, and oxidation, can occur oxidation reaction (combustion reaction), disproportionation reaction; It is also toxic.
4, industry, carbon monoxide is the basis of a carbonization, can be obtained by coke oxygen method, mainly used for the production of methanol and phosgene and organic synthesis.
5, Nickname: Pure CO gas, CO gas, Carbon GAS, 99.9% Pure gas, 99.99% Pure gas
6, storage: the use of seamless steel cylinders: such as 40 liters, 50 liters, 60 liters, 68 liters, 70 liters, 80 liters and so on.
Gas safety tips:
1, high concentration can make people appear different degrees of poisoning symptoms, harm the human brain, heart, liver, kidney, lung and other tissues, and even electric shock death, the lowest lethal concentration of human inhalation is 5000 PPM (5 minutes).
2. When carbon monoxide poisoning occurs, open doors and Windows immediately for ventilation, quickly transfer the patient to a place with fresh air, rest in bed, keep quiet and pay attention to keeping warm.
3, ensure the airway patency. For nausea, vomiting and other serious symptoms, as far as possible to remove vomit or sputum in the mouth of the patient, head to the side, so as not to choke the respiratory tract caused by vomit or aspiration pneumonia.
4, for patients with convulsions or delirium so that coma, ice bags can be placed on their heads to reduce brain edema, and timely sent to the hospital for rescue, it is best to ask the ambulance station to the hospital with hyperbaric oxygen chamber equipment.
Shandong Hongsheng Pressure Vessel Co., Ltd. is willing to be your long-term partner and chief cylinder safety officer, and jointly escort your cylinder safety.
Product Information:

Name	parameter	Name	parameter
Volume	0.8 litres to 80 litres	Place of origin	Made in China
Cylinder outer diameter	89mm-267mm	Minimum design wall thickness	2.4mm-6.2mm
Material	37MN or 34CrMo4	Cylinder body weight	1.60kg-72.4kg
Production standards	ISO9809-1 or ISO9809-3	Height of the cylinder body	197mm-1520mm
Working pressure	150BAR OR 200BAR	Maximum gas storage	0.2m3-12m3 (200L-12000L)
Hydrostatic test pressure	250BAR OR 300BAR	Cylinder mouth threads include	PZ19.2,PZ27.8,PZ39; 25E; 3/4-14 NGT, etc.
Aliases	Utrasonic non-destructive testing gas cylinders ,25E gas cylinders ,UT gas bottles ,25E gas bottles ,25E UT gas cylinders;Mix gas cylinder, 150bar Argon cylinder, Argon C02 bottle, Air gas Argon cylinder, Argon Mix bottle;Portable gas cylinders ,Big Air tank ,Large Oxygen tank ,Small Portable Air tank ,On board Air tank;Oxygen gas cylinders; TPED gas cylinder; 200 bar gas cylinder; Oxygen bomb; Gas cylinders;TPED Air cylinders;TPED Oxygen Cylinders,TPED Cylinders,TPD Tanks,TPD Carbon dioxide cylinders

Shandong Hongsheng Pressure Vessel Co., Ltd. is willing to be your long-term partner and chief cylinder safety officer, and jointly escort your cylinder safety.

200bar Gas cylinder product parameter sheet

Type	Outside Diameter (mm)	Water Capacity (L)	Bottle Height (mm)	Weight (kg)	Working pressure (Bar)	Design wall thickness (mm)	Material Grades
WG 89-0.8-200	89	0.8	197	1.60	200	2.0	34CrMo4
WG 89-1.0-200		1	240	1.83
WG 89-1.2-200		1.2	275	2.07
WG 89-1.4-200		1.4	310	2.30
WG 89-2.0-200		2	419	3.00
WG 108-1.4-200	108	1.4	233	2.81	200	2.4	34CrMo4
WG 108-1.8-200		1.8	284	3.34
WG 108-2.0-200		2	310	3.62
WG 108-3.0-200		3	440	4.96
WG 108-3.2-200		3.2	464	5.24
WG 108-3.5-200		3.5	503	5.64
WG 108-4.0-200		4	568	6.30
WG 108-4.6-200		4.6	645	7.11
WG 108-5.0-200		5	696	7.64
WG 140-3.4-200	140	3.4	324	5.30	200	3.1	34CrMo4
WG 140-4.0-200		4	375	5.89
WG 140-5.0-200		5	447	6.96
WG 140-6.0-200		6	516	7.56
WG 140-6.3-200		6.3	540	7.88
WG 140-6.7-200		6.7	569	8.30
WG 140-7.0-200		7	591	8.63
WG 140-7.1-200		7.1	598	8.74
WG 140-8.0-200		8	665	9.68
WG 140-9.0-200		9	744	10.7
WG 140-9.1-200		9.1	751	10.9
WG 140-10.0-200		10	818	11.9
WG 140-11.0-200		11	892	12.9
WG 140-12.0-200		12	966	14.3
WG 140-13.4-200		13.4	1069	15.5
WG 140-14.0-200		14	1112	16.4
WG 140-15.0-200		15	1188	17.5
WG 159-8.0-200	159	8	548	9.11	200	3.5	34CrMo4
WG 159-9.4-200		9.4	627	10.8
WG 159-10.0-200		10	660	10.9
WG 159-11.0-200		11	716	11.8
WG 159-12.0-200		12	780	13.1
WG 159-13.4-200		13.4	861	15.4
WG 159-15.0-200		15	932	16.8
WG 165-10.0-200	165	10	615	12.5	200	3.6	34CrMo4
WG 165-12.0-200		12	725	14.4
WG 165-15.0-200		15	880	17.2
WG 180-8.0-200	180	8	467	13.5	200	3.9	34CrMo4
WG 180-10.0-200		10	571	15.4
WG 180-13.4-200		13.4	721	18.6
WG 180-15.0-200		15	792	20.2
WG 180-18.0-200		18	924	23.1
WG 180-20.0-200		20	1012	24.8
ISO 232-40.0L-200	232	40.0	1167	43.0	200	6.0	34CrMo4
ISO 232-46.7L-200		46.7	1345	48.9
ISO 232-47.0L-200		47	1351	49.0
ISO 232-50.0L-200		50.0	1450	57.7
ISO 267-60.0-150	267	60	1330	66.7	150	5.8	37MN
ISO 267-68.0-150		68	1490	73.9
ISO 267-70.0-150		70	1530	75.7
ISO 267-80.0-150		80	1730	84.7
