ASTM D 3475 Child-Resistant Packaging Bottle Cap Torque Testing Machine China Manufacturer

Product Description

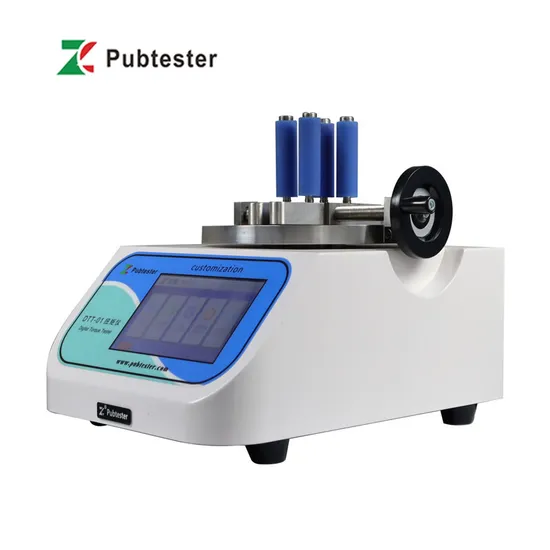

DTT-01 Child-Resistant Packaging Bottle Cap Torque Testing Machine
DTT-01 Child-Resistant Packaging Bottle Cap Torque Testing Machine is one professional testing instrument for determination of application torque and removal torque of bottle caps. This instrument is featured with high precision and stability of measured results. It is applicable to application torque and removal torque of closures of bottles, suction nozzle package and soft tube package, etc. Technical Features Embedded micro-computer chips, simplified and efficient user interface provide users with comfortable and smooth operating experience Standardized, modularized and systematic designs can meet personalized requirements of the users UI interface, 7-inch HD color touch screen, displaying test data in real time Imported high-speed and high-precision chips guarantee the testing accuracy and efficiency Three groups of torque unit switching function: Lbf·in, Kgf·cm, N·m Dual test modes for open force and lock force The measured peak value is automatically maintained to ensure that the test result is accurately recorded Intelligent configuration of overload protection, automatic reset, power-down memory and trouble indication to ensure the safety of users' operations Equipped with micro-printer and standard RS232 interface, which is convenient to data transmission With a powerful data storage function, which can store up to 50,000 test records Energy conservation and environmental protection design, ultra-low power consumption conforms to national energy-saving and environmental protection requirements Test PrincipleThe specimen is clamped on a fixed plate to open or lock the specimen manually, and the torque applied to the specimen is collected by a sensor connected to the fixed plate to obtain the opening or locking force of the specimen.
Applications

Basic Application		Extended Application
Bottle Package	Flexible Tube Package	Application & Removal Torque of Screw Nut	Vacuum Flask and Vacuum Cup
Open and lock force test of the bottle caps for bottled packages for food, pharmaceuticals, e.g. beverage or tablet bottles	Open and lock force test of flexible tube packages for food, pharmaceuticals and cosmetics, e.g. eye-drop, hand cream and shoe polish	Open and lock force test of the screws	Open and lock force test of the caps of vacuum flasks and vacuum cups

Technical Specifications

Specifications	DTT-01
Load Cell Capacity	20 N·m(Standard)
	40 N·m, 50 N·m (Optional)
Accuracy	1% FS
Resolution	0.001 N·m
Clamp Range	Φ5 mm~Φ180 mm (Diameter)
Statistical Analysis Allowance	1~50000
Test Mode	Manual
Instrument Dimension	310 mm (L) × 390 mm (W) × 270mm (H)
Power Supply	AC 220V 50Hz /120V 60Hz
Net Weight	20 kg

Standards
ASTM D2063, ASTM D3198, ASTM D3474, GB/T 17876, BB/T 0025, BB/T 0034
Configuration
Standard Configuration:Instrument, Micro-printer
FAQ
Are you a manufacturer or trading company?
We are the manufacturer and trading combo, which specialize in material testing instruments such as plastic package, medical device, facial mask, protective clothing and pharmaceutical package, etc. We located in Jinan, Shandong, China.
Do you have any certificate?
We have obtained CE certificate, passed ISO 9001, IPMS management system certificates, and have 18 utility model patents and 4 software copyright certificates.
How about the installation?
The user's manual specifies the installation requirements with details. We will advise the relative information in advance, such as power supply, space, required temperature, humidity, etc.
Do you have after-sales service?
We will carry out the equipment inspection before delivery. If the machine does not work properly, we can make a remote control service to help dealing with the failure. We promise to reply within 24 hours and provide solutions within 2 working days.
How about the warranty?
Our warranty is 12 months, lifelong free of charge! User just bear the materials cost and express charge out-of-warranty period.
How long does the delivery time?
For the regular machine, 3-5 working days. For the customized one, 30 days or so.
