Yg8 Tungsten Carbide Wire Drawing Mold

Product Description

Product Description
√ The use of pressing molding technology, can produce a variety of complex shapes of cemented carbide products.
√ Organize production according to users' drawings.
√ Small deformation and high precision.
√ The product can be used directly without machining.
√ All kinds of welding and splicing cemented carbide products can be customized.

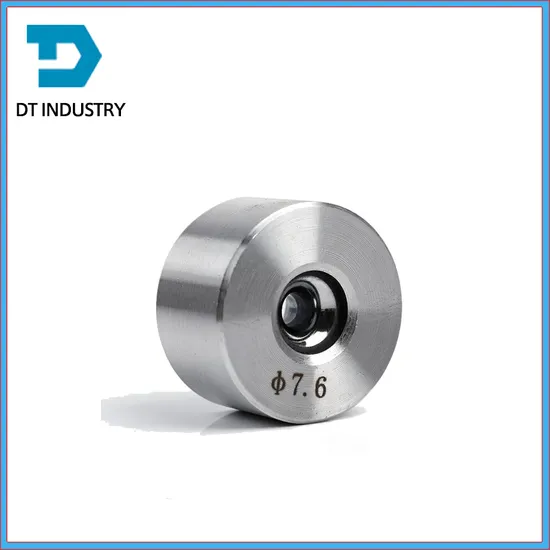

YG8 tungsten carbide wire drawing mold

Grade No.	Density g/cm3	T.R.S HP	Hardness HRA	Performance & Applicaion
YG8	14.7	2400	89.5	With higher strength, lower than YG6, suitable for making parts.

------Welcome to customize------

Product Parameters

Grade No.	Density g/cm3	T.R.S HP	Hardness HRA	Performance & Applicaion
YG6	14.9	2150	90	High performance, it is used for cast iron, non-ferrous metal and its alloy and non-metallic materials processing tools, parts, but also can be used for other tools with alloy.
YG8	14.7	2400	89.5	With higher strength, lower than YG6, suitable for making parts.
YG11	14.4	2420	88.5	Suitable for all kinds of metal and non-metal powder molding and stamping.
YG15	14	2500	87.5	Suitable for drawing steel bar and steel pipe under high compression rate. Top forging, punching and stamping tools that work under high stresses
YG20	13.5	2800	85.5	Suitable for making stamping die. Such as stamping watch parts, musical instrument spring, etc.; Die for punching battery case and tooth paste; Stamping die for small size steel balls, screws, nuts, etc.
YG16C	13.9	2750	85.5	Suitable for general impact resistance forging die.
YG18C	13.7	2800	84.5	Suitable for general impact - resistant forging die, hot heading die and finishing roll.
YG20C	13.5	2850	83.5	Suitable for general damage, impact resistance mold.
YG22C	13.3	2900	83	Suitable for general impact resistant die and nut forming die.
YG25C	13.1	2950	82.5	Suitable for stainless steel screw die, semi - finished roll.

Main features
1, pull soft metal (such as gold and silver) steel die is enough, steel die can have a number of holes of different apertures.
2. carbide die - Tungsten carbide nib is commonly used for drawing steel wire (steel wire). The typical structure of this die is a cylindrical (or slightly taper) carbide die core closely embedded in a round steel sleeve (case). The inner hole of the mold core has the Bell radius, the Entrance angel, the deformation (working) cone (approach angle), the bearing belt and the exit Angle (back relief).
3, steel wire die - pull non-ferrous metal wire, such as copper, aluminum, also more used and wire die similar drawing die, the shape of the hole some differences.
4, polycrystalline mold - drawing fine line can be used to polycrystalline mold (artificial diamond), and the use of natural diamond drawing mold
Hot products

Our Advantages
Making tungsten steel mold based on your drawing or your finished products' size.
Inspecting, packing, uploading and shipping service;
Offering all related auxiliary machines, spare parts and consumable tools;
Installing and adjusting machines on site and technology training your labors for operation;
Trial production on site till everything is going well;
On-site technology support if customer needs.
24 hours service online before sales and after sales.
Company Profile
Guangzhou DT Exp. & Imp. Co. Ltd is established in 2012. We are mainly manufacturing machines for non-ferrous metal production.
The main machines are electric melting furnace, holding furnace, continuous casting machine, cutting machine, peeling machine, chamfering machine, drawing machine and, straightening machine. And rolling equipment for steel and brass and copper strip.
Also we are supplying Graphite products for non-ferrous continuous casting production line and tungsten steel mold for extrusion and drawing and peeling production line.
We have a professional and passionate service team, including research and development department, technology support department and international after sales service department.
Our advantages: Qualified Machines; Professional technology, Efficient Service, Worry-free Guarantee.
Our Values: Products as the fundamental, Customers as the center, Create a win-win situation.
