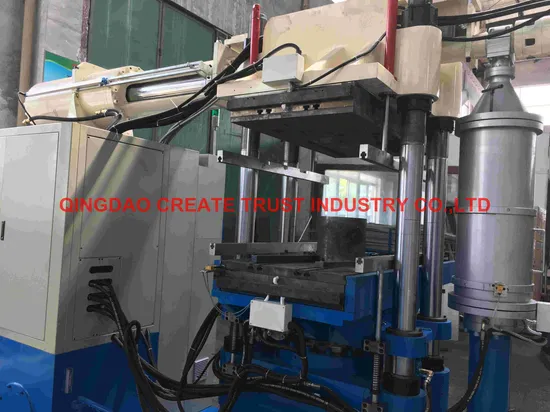

China Top Quality Level Rubber Injection Machine with Siemens PLC Control System (CE/ISO9001)
Basic Info.
Model NO.
CX-200
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
General Character
Seal Completely,Pressure Steady
Temperature
High Precision, Tolerance 1 Degree
PLC
Simens Automatic Control
Plate Material
Chrome Plated,Mirrow Polishing
Hydraulic Parts
Yuken,
Walves,Pump
Rexroth,Germany
Seal
Nok,Japan
Transport Package
Wooden Case Safety Packing
Specification
CE, ISO9001: 2008
Trademark
CX
Origin
China
HS Code
8477800000
Production Capacity
30 Sets/Month
Product Description
Model No.: CX200TName : Name :
Injection moulding press, Rubber injection machine, Rubber injection press, Rubber injection moulding machine, rubber injection moulding press.
Usage :
The machine applies to vulcanizing various kinds of model rubber and plastic products as well as non-model products.
FEATURES
1- High precision for temperature,tolerance is +_1 degree
2- No oil ,pressure leakage,very seal completely.
3- PLC automatic control, also we design manual control is available too.
4- You can set the time and temperature , automatic control, when reach the time, the machine will stop heating ,automatic discharge for the pressure.
Main parameters below :
Type | 200T | 300T | 400T |
Clamping force(Ton) | 200 | 300 | 400 |
Stroke(mm) | 550 | 600 | 600 |
Heating plate size(mm) | 510*500 | 600*650 | 650*700 |
Diameter of cylinder(mm) | 350 | 450 | 500 |
Injection volume(cc) | 2000 | 3000 | 4000 |
Horsepower(HP) | 15*1 | 20*1 | 25*1 |
Type of mold opening | 2RT/3RT/4RT up down in/out-2RT/3RT/4RT | ||
Single shaft thermal electricity(kw) | 12.6 | 16 | 25 |
Total power(kw) | 28 | 36 | 45 |
Gross weight(kg) | 6000 | 9000 | 9500 |
Machine size(mm) | 3200*2400*2500 | 3700*2560*2710 | 4000*2800*2850 |
Service of us
The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !
