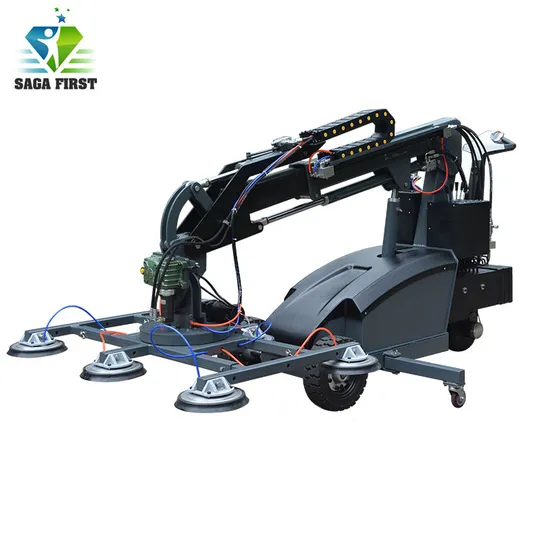

Sagafirst Gl-Ld-600 Electric Hoist Robatic Vacuum Glass Lifter for Metal Sheet Marble

Product Description

Electric Drivable Glass Vacuum Lifter
OEM&ODM Service Sagafirst Vacuum lifter are specially design for handling different kinds of heavy plate, board and glass, useful for installing steel board, glass wall, moving such as granite, marble. Easily handle lifting, moving and rotating with vacuum suction caps and powerful drive system.

Model Type		GL-LD-300	GL-LD-400	GL-LD-500	GL-LD-600	GL-LD-800
Load Capacity		300kg (retract) 150kg (extend)	400kg (retract) 200kg (extend)	500kg (retract) 250kg (extend)	600kg (retract) 300kg (extend)	800kg (retract) 400kg (extend)
Lifting Height		3500mm	3500mm	3700mm	3700mm	4500mm
QTY of Suction Cap		4pcs	4pcs	6pcs	6pcs	8pcs
Rubber Suction Cap		Ø300mm	Ø300mm	Ø300mm	Ø300mm	Ø300mm
Maintenance-free Battery		2x12V/80AH	2x12V/100AH	2x12V/120AH	2x12V/120AH	2x12V/120AH
Battery Charger		Smart Charger	Smart Charger	Smart Charger	Smart Charger	Smart Charger
Drive motor		24V/1200W	24V/1200W	24V/1200W	24V/1200W	24V/1200W
Lifting Motor		24V/2000W/6L	24V/2000W/6L	24V/2000W/6L	24V/2000W/6L	24V/2000W/12L
Chassis L*W		2660*810mm	2660*810mm	2800*810mm	2800*810mm	2800*810mm
Driving Wheel		Ø250x80mm	Ø250x80mm	Ø300x100mm	Ø300x100mm	Ø300x125mm
Packing Size(mm)		2560*1030*1700	2560*1030*1700	2580*1050*1700	2580*1050*1700	3000*1250*2300
N.W/G.W		1100/1150kg	1280/1330kg	1300/1350kg	1400/1450kg	1600/1650kg
Loading Qty		1x20/40GP: 6/12SETS
Movement	Automatic (4 kinds)	Pad frame vertical up/down 180°automatic Boom in/out TELESCOPIC automatic Powered arm up/down automatic Lateral side shift 100mm automatic
	Manual (2kinds)	Pad frame tilt left/right 90° manual (Pls look at Optional 1. automatic turn lift/right) Pad frame rotation 360°manual (Pls look at Optional 2. automatic rotation 360°)
Usages		Mainly used for handling,moving and installing glass,marble,wooden panel etc.

GL-LD series: light duty vacuum lifter, small size, easy to transport.
The lifter can reach a height of 3.6m,even being customized to 4m.Its boom arm is very flexible with 360° rollover and 180° tilt frame pad.So it's widely used for handle,moving and installing glass,windows,doors and other heavy panels etc.Special design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with vacuum suction caps.
Flexible movements Display:
6 kinds of different movement to meet various using occasions
Features & Advantages a. Integrated control system secures quick and automatic positioning vertically and horizontally by a single push on a button. b. DC24V reliable actuators for lifting, extension and tipping. efficient and precise. Self propelling, various circuit vacuum suction. c. Attractive price, staff saving, strong improvement of working environment.
Heavy duty vacuum lifter, easy to move around
Self-propelled drive, Higher lift cap. is available upon request. Electric side shift 100mm both right & left. Electric tilting forwards & backwards from vertical to horizontal or reverse. Suction plate is manual rotating.
Certificate: CE,ROHS,ISO,SGS ETC.
Dealers and Wholesalers are especially welcomed and we will give special discounts.Vacuum Lifter Robot will be packed in strong wooden carton and shipped by sea.Welcome to visit us and negotiate business.We will pick up you and arrange the accommodation hospitally.
Our Service:
1.We can design the customerized the lifter as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port or home.
4.Opetion video can be sent to you if needed.
5.Maintenance and user manual.
6.Parts of the lifting equipment can be sent to you by express within 7 days if needed.
Frequently Asked Questions:
1.How can customer buy parts once it break down?
The lift adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair if any problem?
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
one year quality guarantee.send the parts free of charge

Frequent Asked Questions	Answers
Are you a factory or trading company?	We're factory with over 12years exporting experience.
What's the MOQ?	1UNIT,the more,the better.
What's the payment terms?	<USD4999: 100%TT in advance. >USD5000: 30%TT in advance,balance before shipment. >USD10,000: TT or Irrevocable L/C At Sight.
Do you offer OEM&ODM service?	Yes,like lifting capacity, lifting height, size of platform,painting color,logo,manual etc.
What's the delivery time?	15~20days after down payment
What's the quality warranty?	24 months.Offer free parts for replacement.
How can I get the after-sales service?	We offer videos,pictures and technical guidance immediately.
What's your QA&QC policy?	3times 100% inspection before shipping.
Can you tell me your clients in my country?	Of course. But only after the permittance of customers.

Feel free to contact us anytime. Our professional salesmen are 24hours online.
